Description

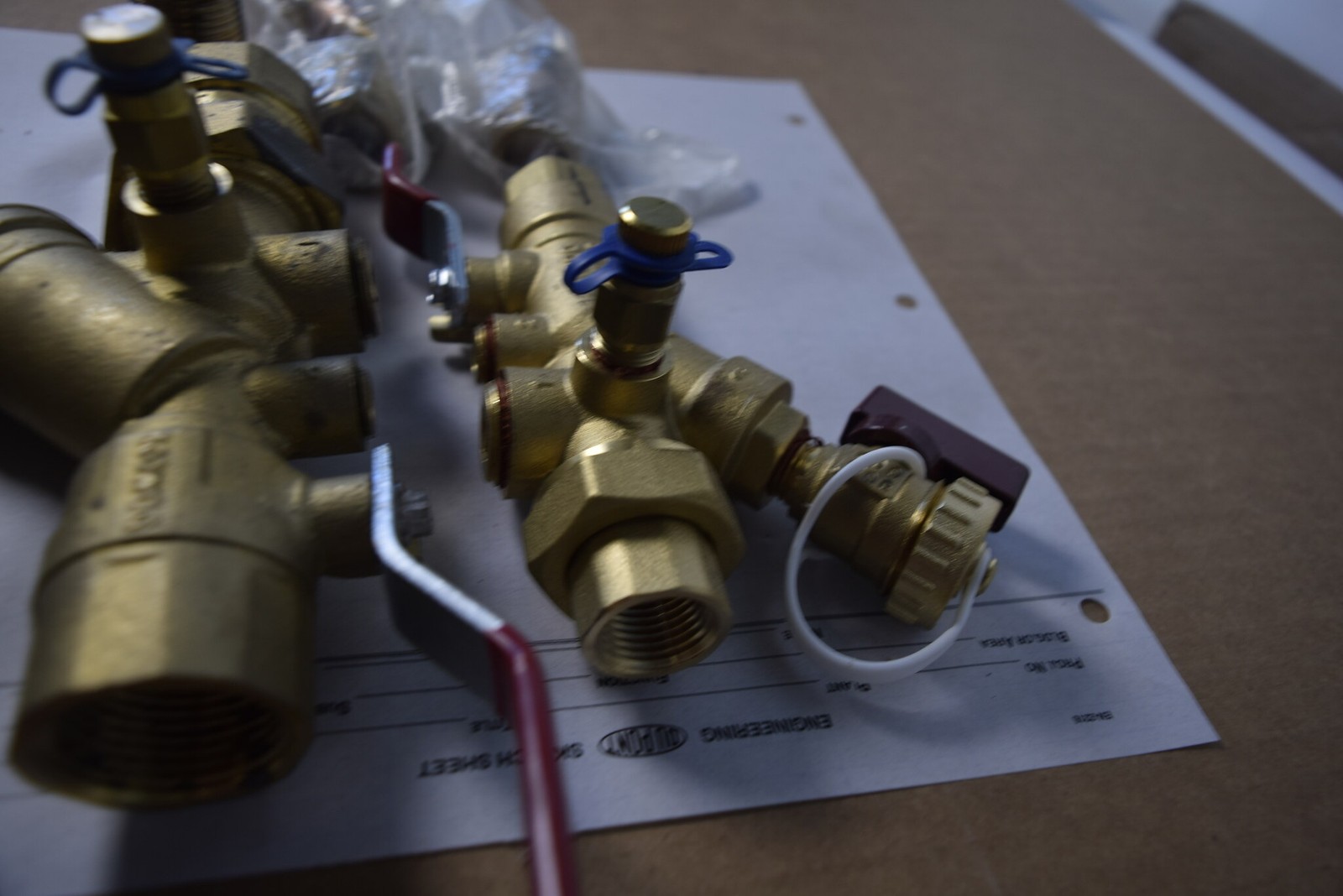

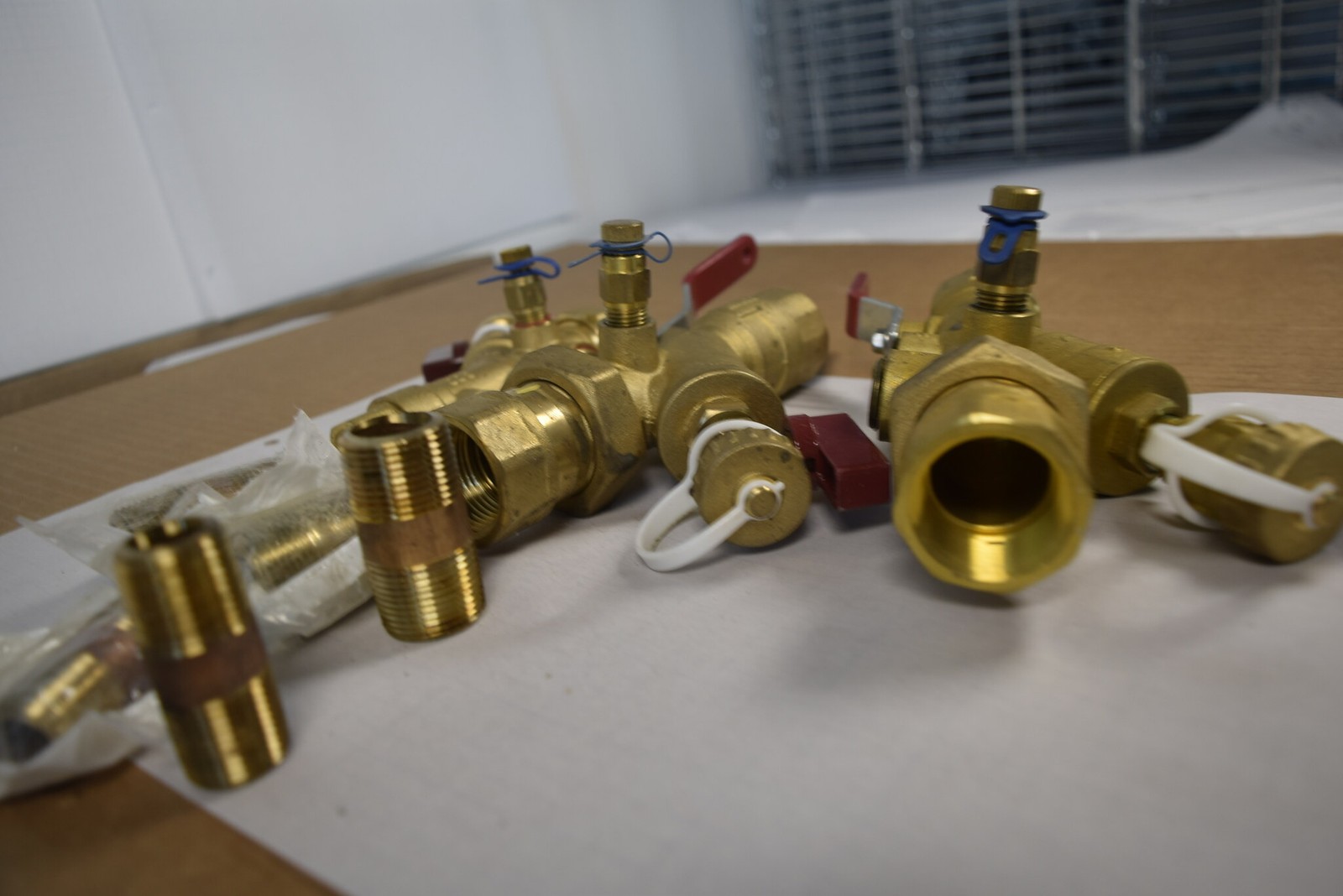

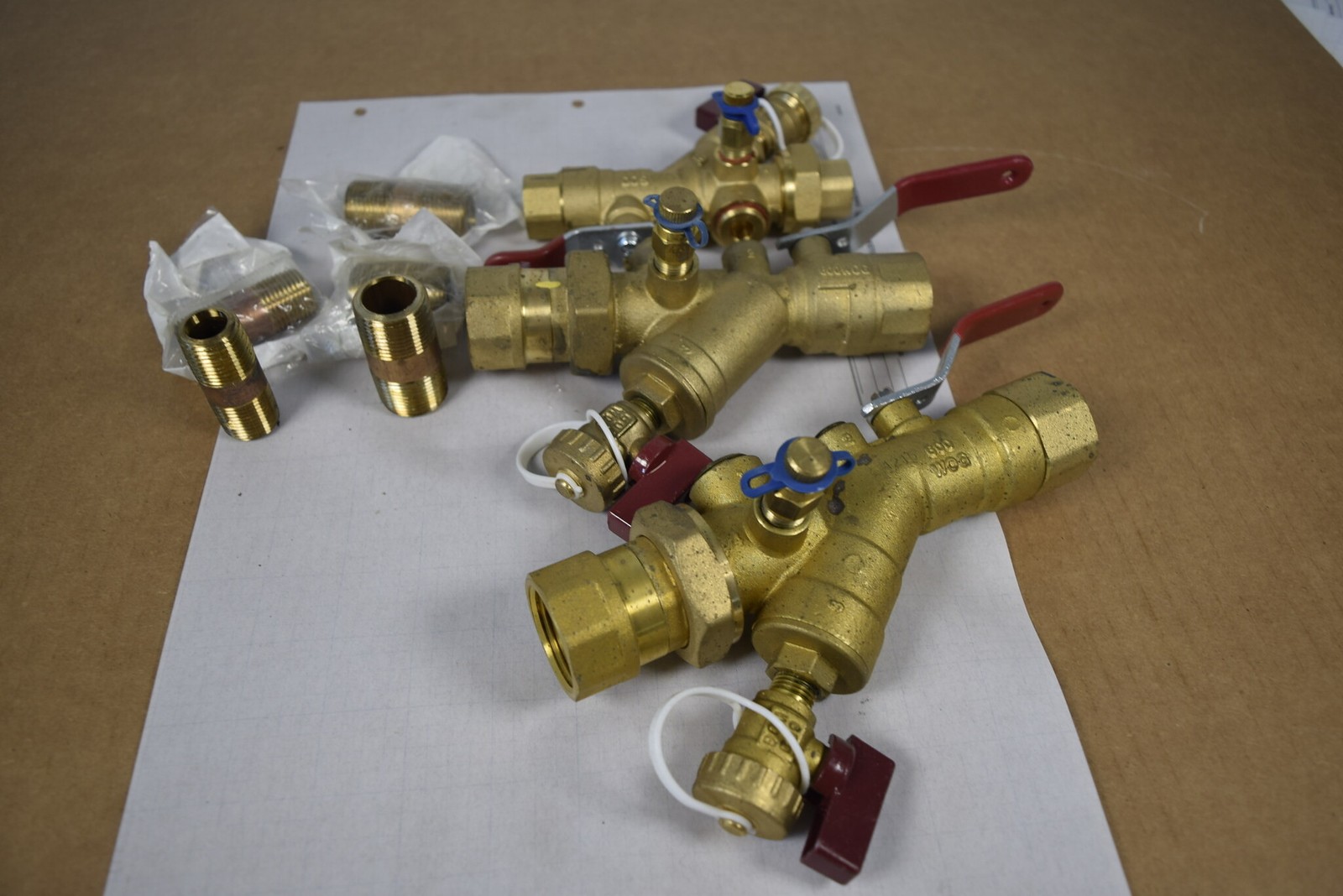

New old stock NuTech SV1e combination strainer valve: ball valve, 20-mesh stainless Y-strainer and union in one 3/4" body, with P/T port and a hose-end blowdown drain on the strainer. Size confirmed against a ruler in the photos.
Condition
New old stock, unused. Not pressure-tested or installed. Light shelf dust and minor brass tarnish, no wear, sealant or wrench marks. Strainer blowdown and P/T caps fitted; valve turns freely; strainer screen not inspected. Yellow paint dot on the tailpiece. No part tag on this unit. No carton or paperwork.
Bench report
- Functional
- New, unused surplus stock. Strainer blowdown cap and P/T cap fitted; valve turns freely.
- Cosmetic

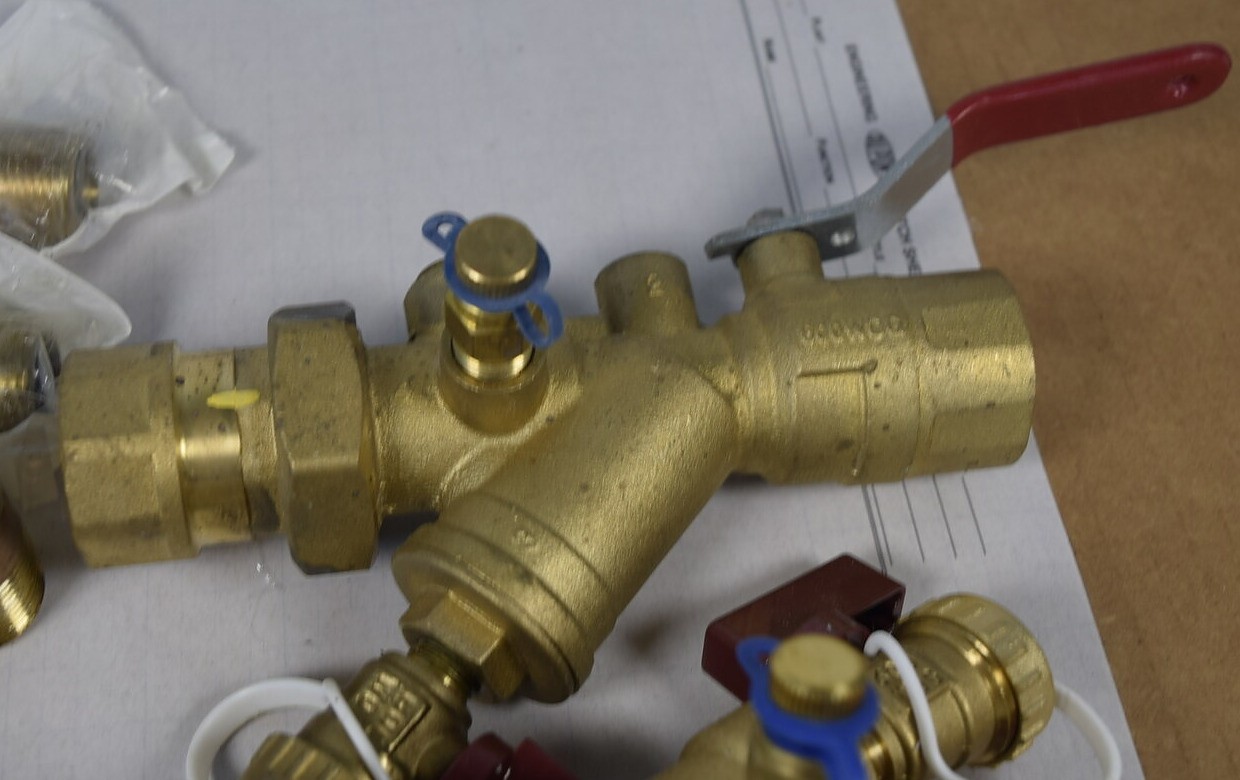

- Shelf dust and light tarnish. A yellow paint dot on the union tailpiece from the stock room - cosmetic.
- Tested

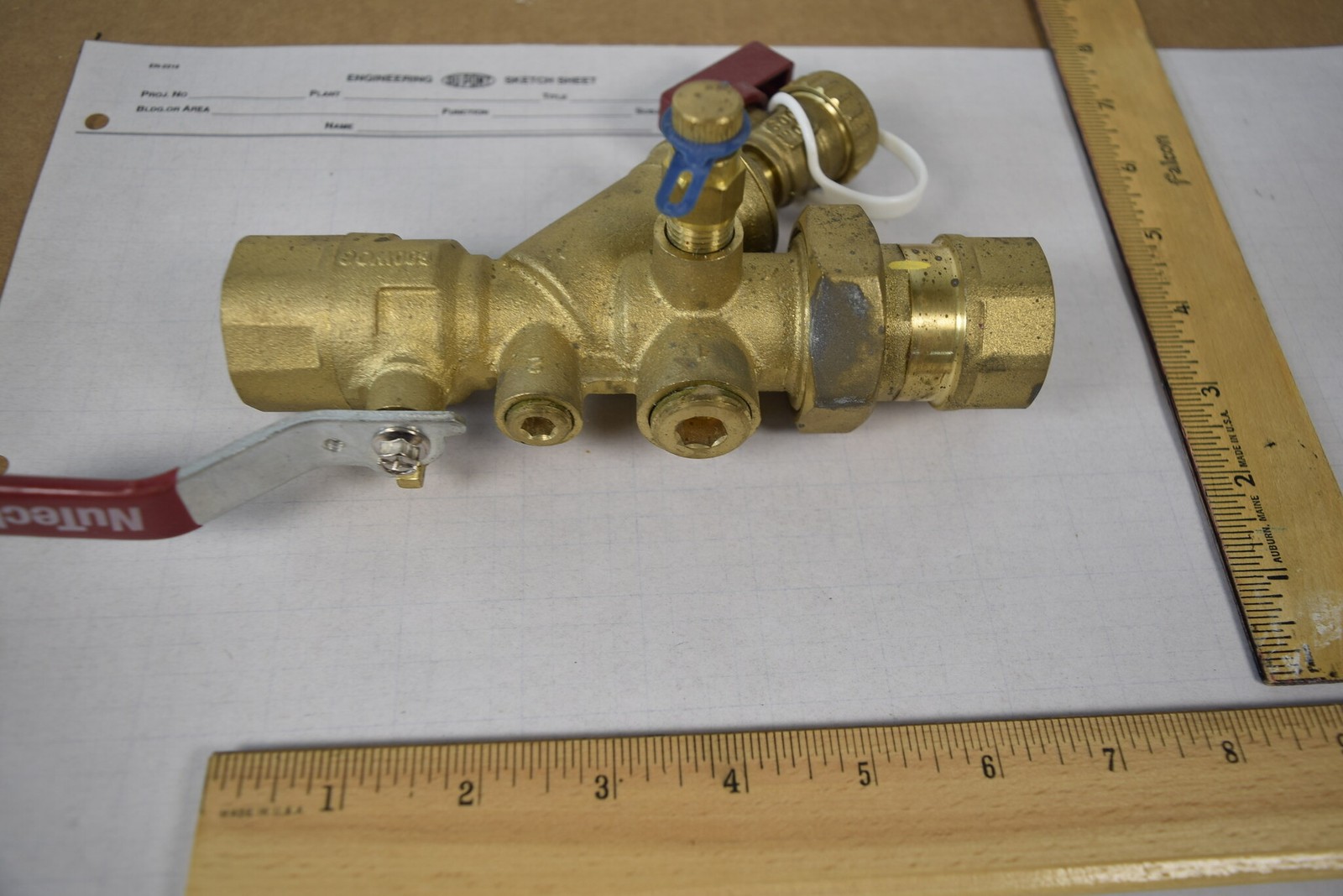

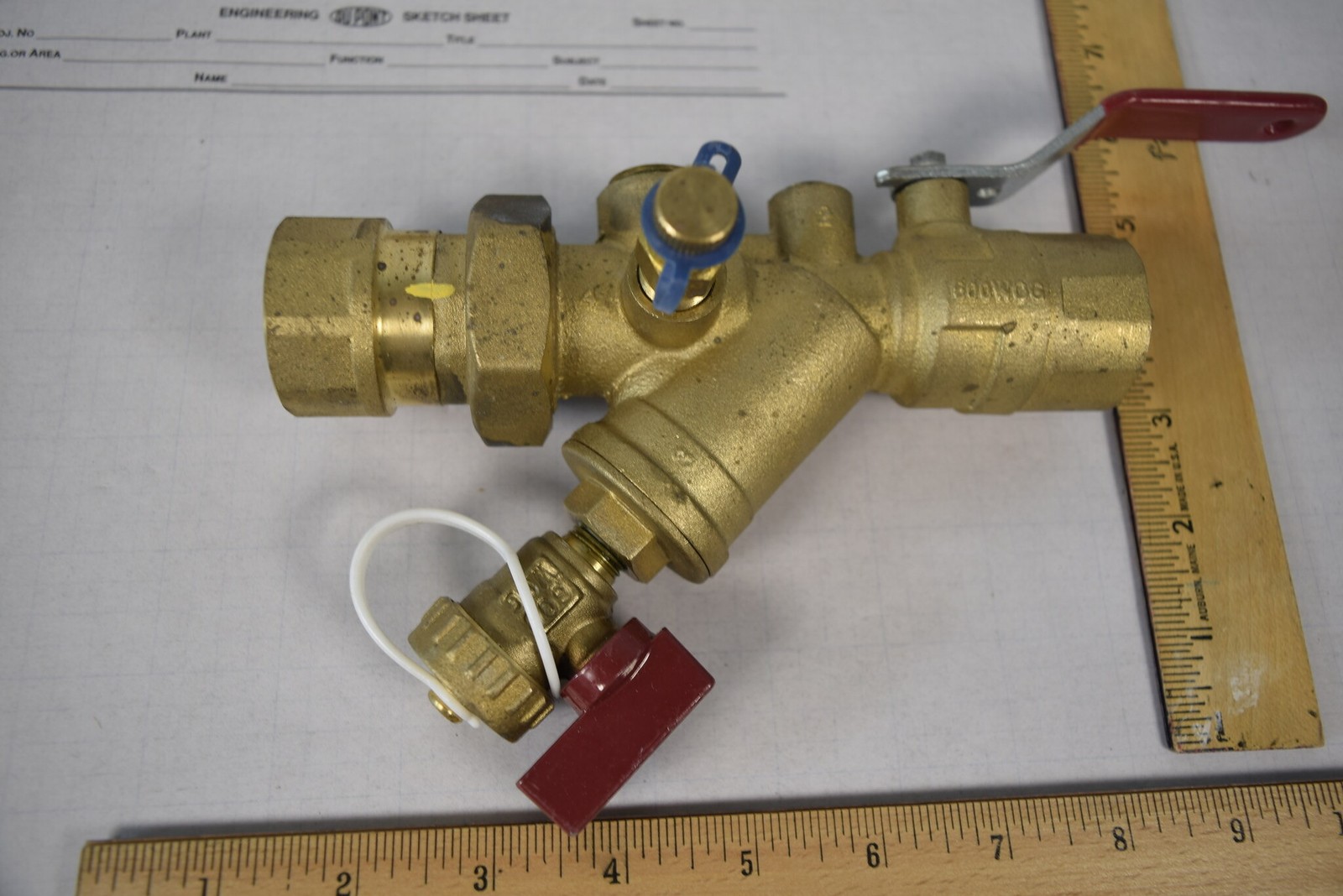

- Size 3/4" NPT confirmed: FNPT end measures about 1.45" across against the ruler (see photos) · Overall length matches the NuTech SV1e-075 dimension table · Cast 600 WOG on the body; strainer blowdown (mini lever + knurled cap, tethered) and P/T port present and capped
- Not tested
- Not pressure-tested and not installed · Strainer screen not removed for inspection · No part tag on this unit - model matched by measurement
Specifications
- Brand
- NuTech Hydronic Specialty Products (Hatfield, PA)
- MPN
- SV1e-075F-075F
- Type
- Combination Strainer Ball Valve
- Model
- SV1e-075F-075F (matched by measurement)
- Connection Type
- Union x FNPT
- Pipe Size
- 3/4 in
- Material
- Brass
- Maximum Pressure
- 600 psi WOG
- Maximum Temperature
- 250 F
- Country of Origin
- United States
- Size
- 3/4" - ruler-confirmed
- Ends
- Union tailpiece x FNPT
- Strainer
- Removable 20-mesh stainless steel wye strainer with hose-end blowdown
- Ports
- P/T test port, plugged bypass/accessory ports
- Body
- Forged brass
- Ball / stem
- Stainless steel, blowout-proof stem
- Seats / seals
- PTFE seats, double EPDM O-ring stem seals
- Rating
- 600 psi WOG, 250 F (120 C)
- Handle
- Red zinc-plated lever with vinyl grip and memory stop
- Weight
- approx. 2.7 lb
- Retail (new)
- about $150-160 at industrial supply
