Description

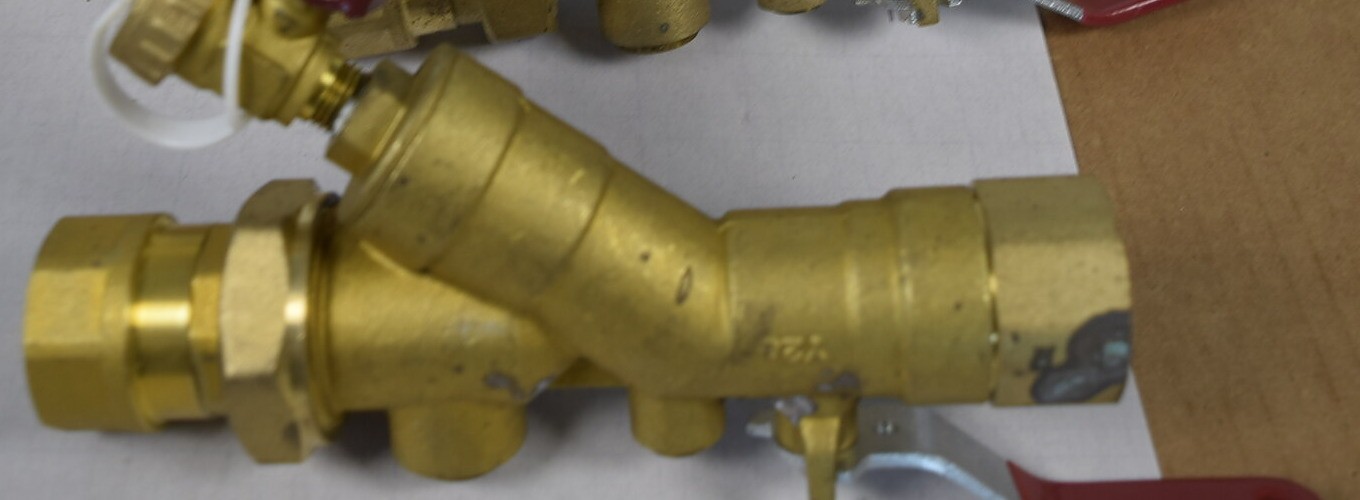

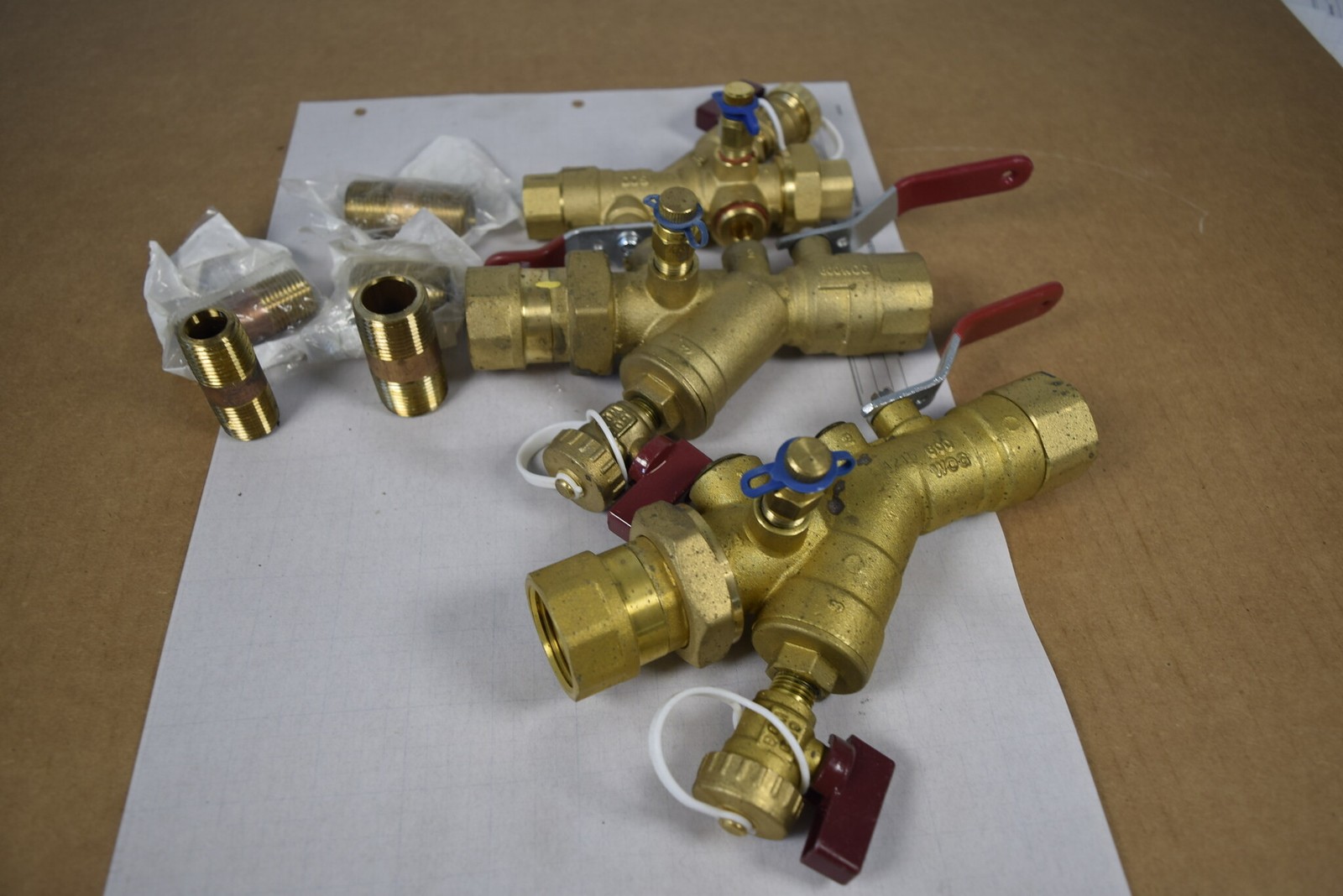

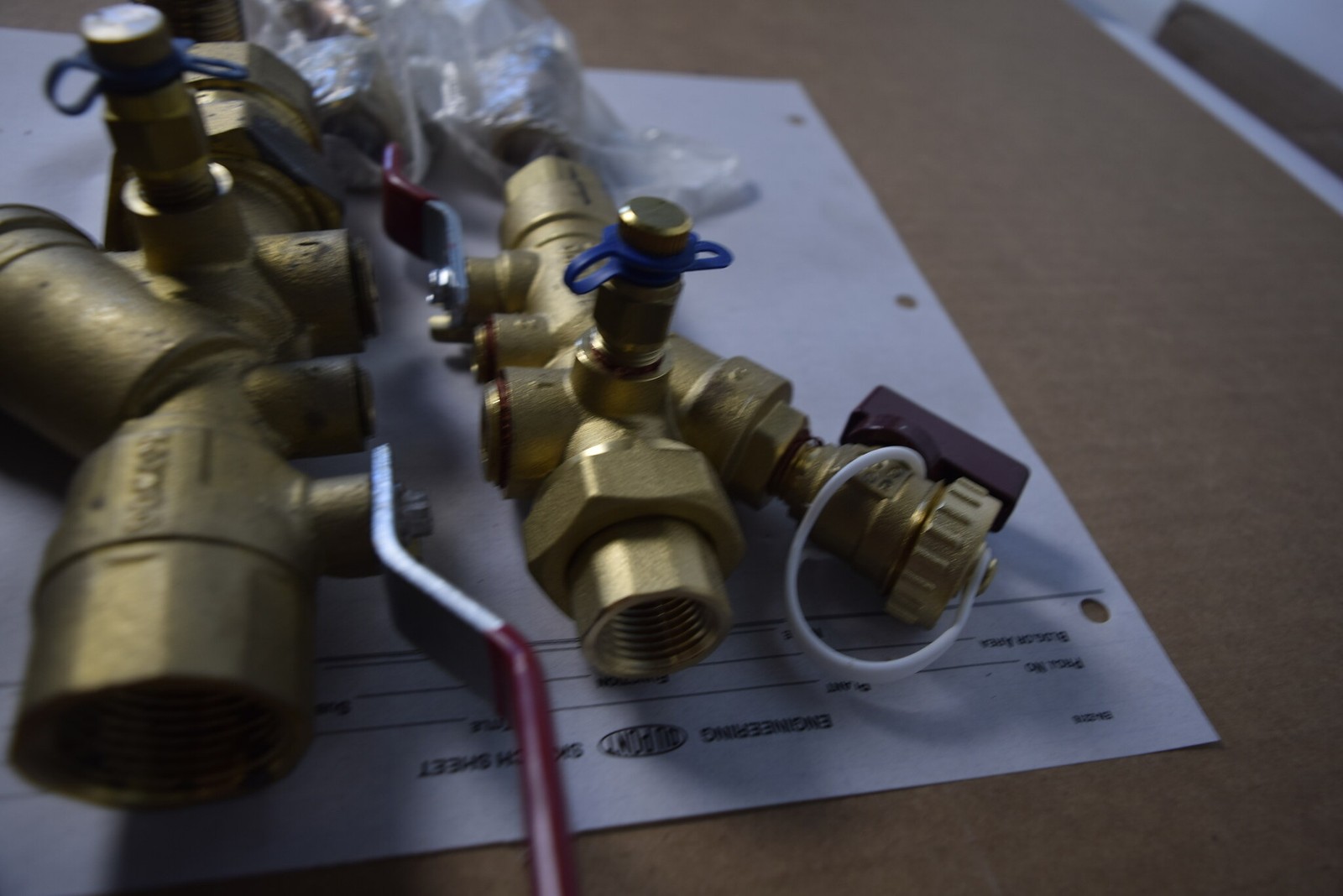

New old stock NuTech SV2e combination strainer valve in 1": the larger SV2e body with ball valve, 20-mesh stainless Y-strainer and union, P/T port and a hose-end blowdown drain on the strainer. Size confirmed against a ruler in the photos.
Bench report
- Functional
- New, unused surplus stock. Strainer blowdown cap and P/T cap fitted; valve turns freely.
- Cosmetic
- Shelf dust and light tarnish only.
- Tested

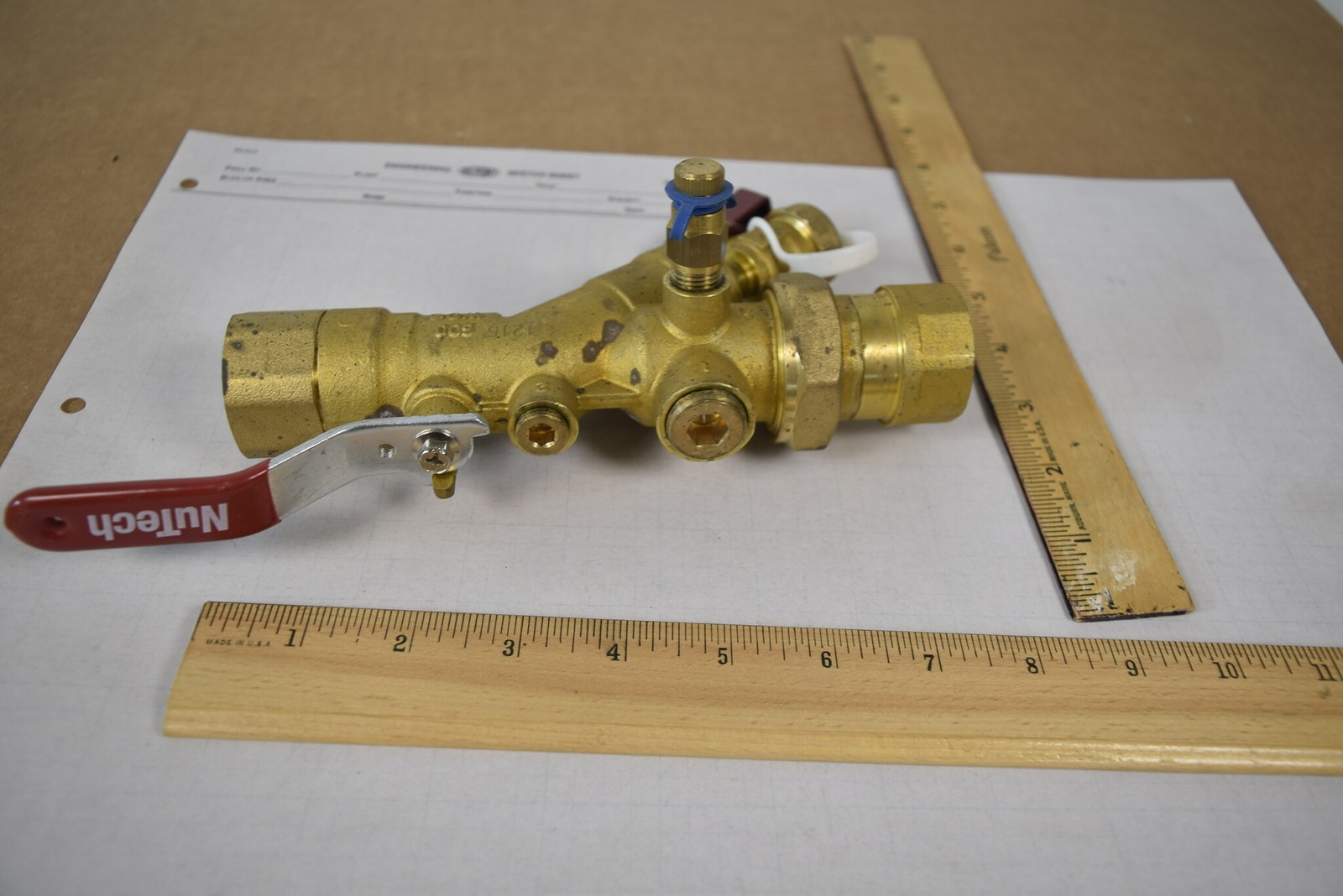

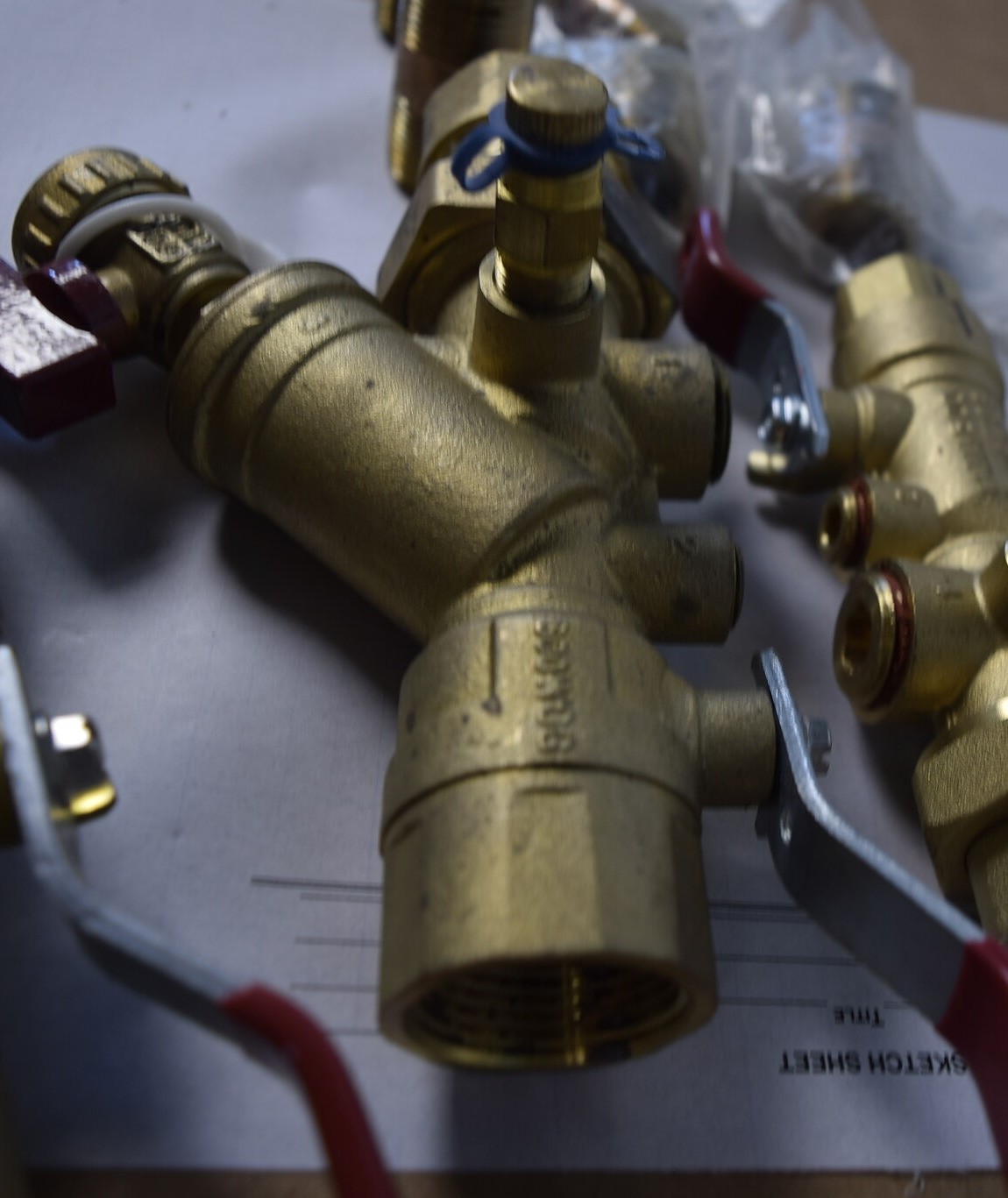

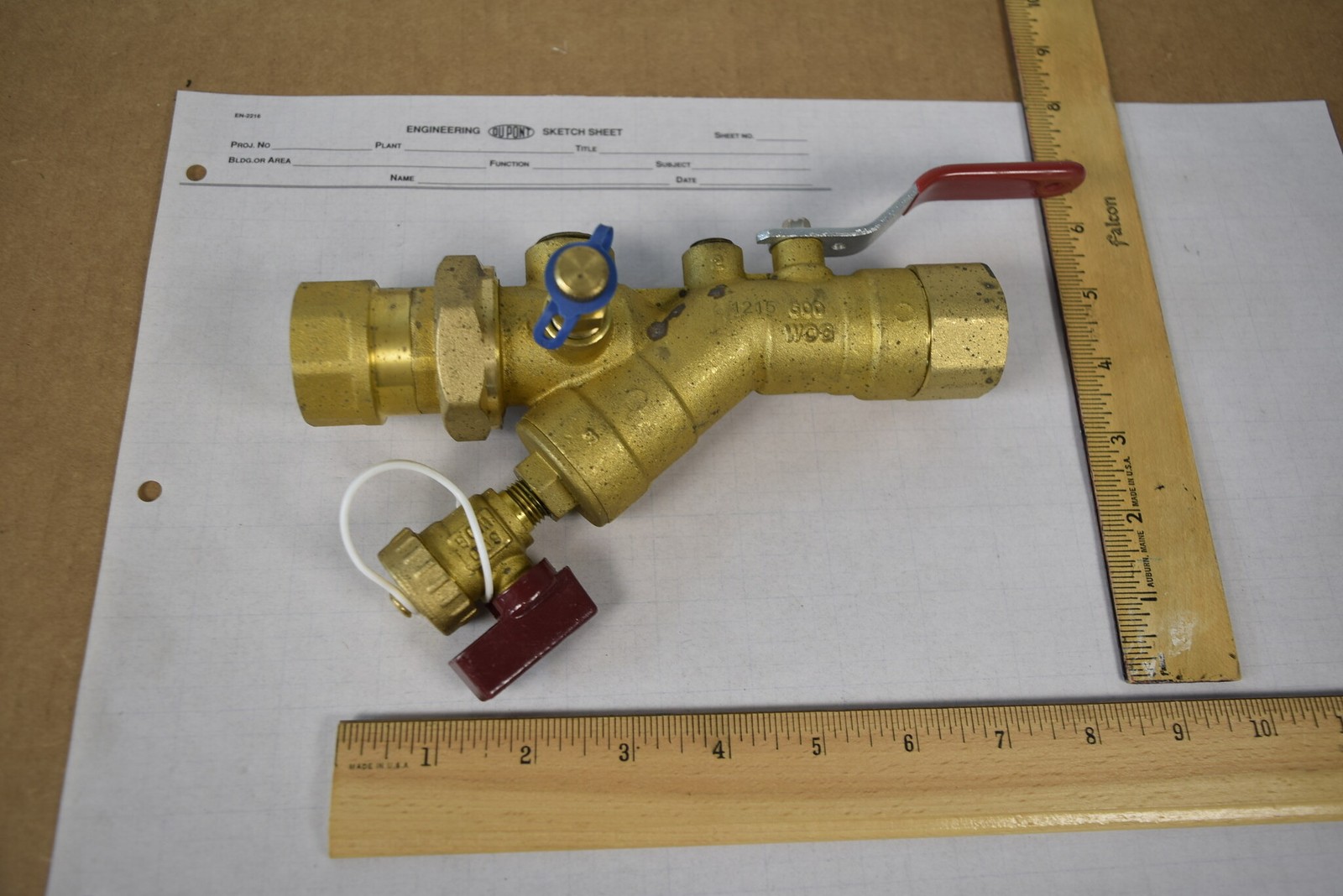

- Size 1" NPT confirmed: FNPT end measures about 1.7" across against the ruler (see photos) · Overall length matches the NuTech SV2e-100 dimension table (the larger body, not SV1e) · Cast body marks read: 1215, 600 WOG; strainer blowdown (mini lever + knurled cap, tethered) and P/T port present and capped
- Not tested
- Not pressure-tested and not installed · Strainer screen not removed for inspection · No part tag on this unit - model matched by measurement
Specifications
- Model
- SV2e-100F-100F (matched by measurement)
- Size
- 1" - ruler-confirmed
- Ends
- Union tailpiece x FNPT
- Strainer
- Removable 20-mesh stainless steel wye strainer with hose-end blowdown
- Ports
- P/T test port, plugged bypass/accessory ports
- Brand
- NuTech Hydronic Specialty Products (Hatfield, PA)
- Body
- Forged brass
- Ball / stem
- Stainless steel, blowout-proof stem
- Seats / seals
- PTFE seats, double EPDM O-ring stem seals
- Rating
- 600 psi WOG, 250 F (120 C)
- Handle
- Red zinc-plated lever with vinyl grip and memory stop
- Weight
- approx. 2.7 lb
- Retail (new)
- about $195-215 at industrial supply
