Description

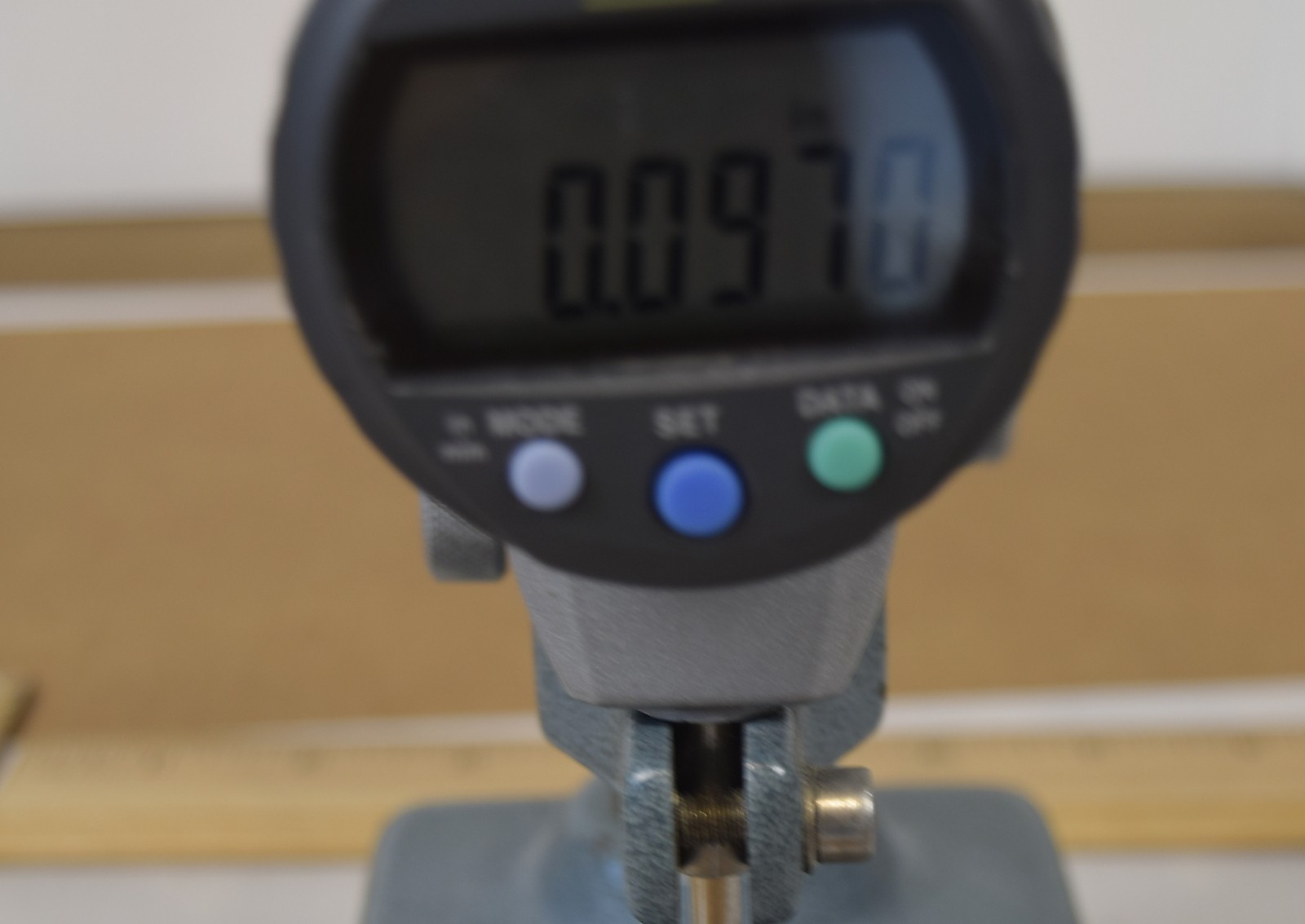

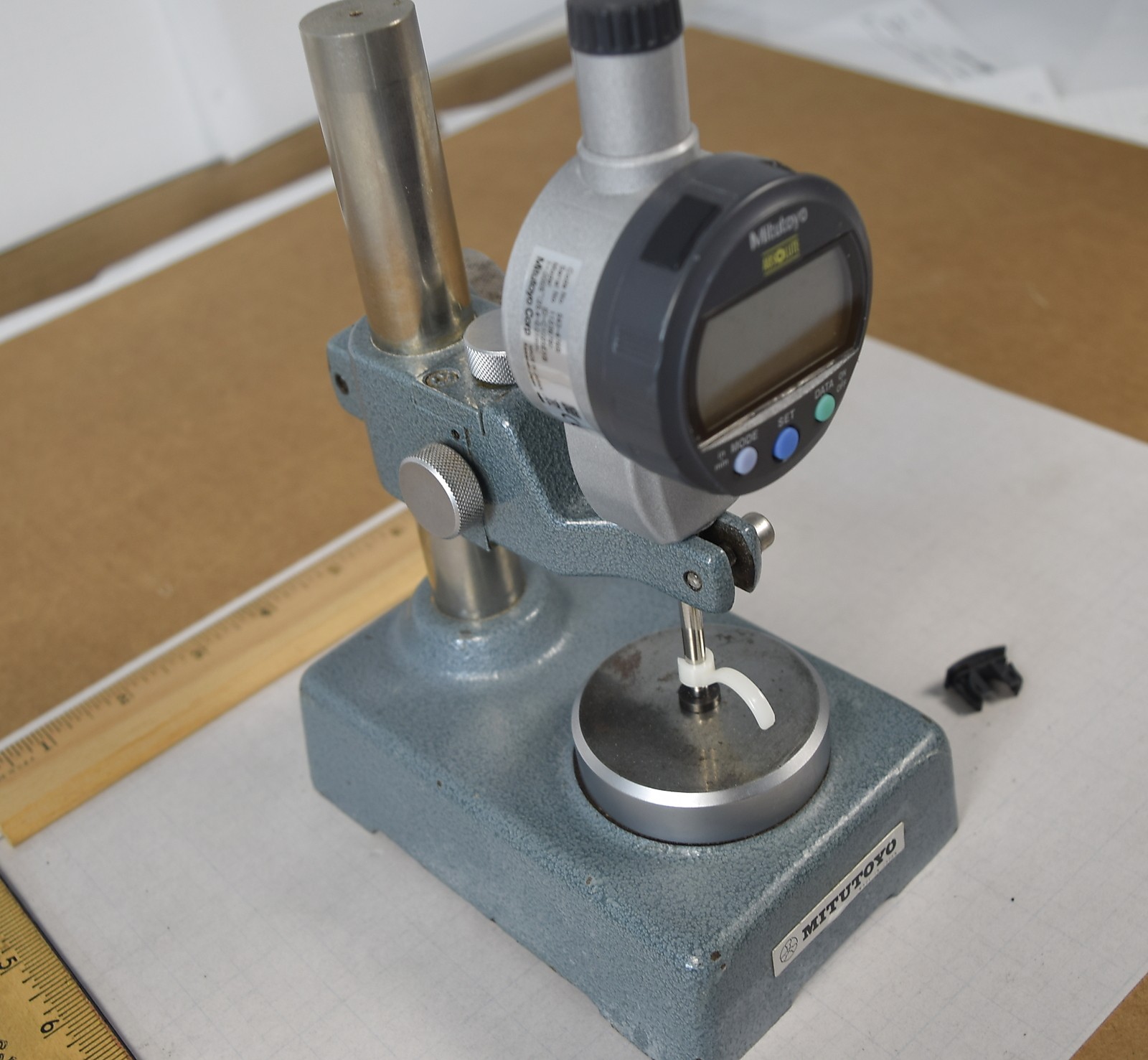

A complete, tested bench comparator setup: a Mitutoyo ABSOLUTE Digimatic indicator (code 543-476B, model ID-C1025EXB, 1" / 25.4 mm range, .0005" / 0.01 mm resolution, inch/mm switchable) mounted on a Mitutoyo No. 7004 comparator stand with a 2-1/4" flat anvil and fine adjust. Bench-tested together on this stand: it zeroes, repeats to within one count, holds its ABSOLUTE origin through a power cycle, and counts cleanly through the full inch. A fresh SR44 cell is fitted. Unpack it, set it on the bench, and measure.
Bench report
- Functional

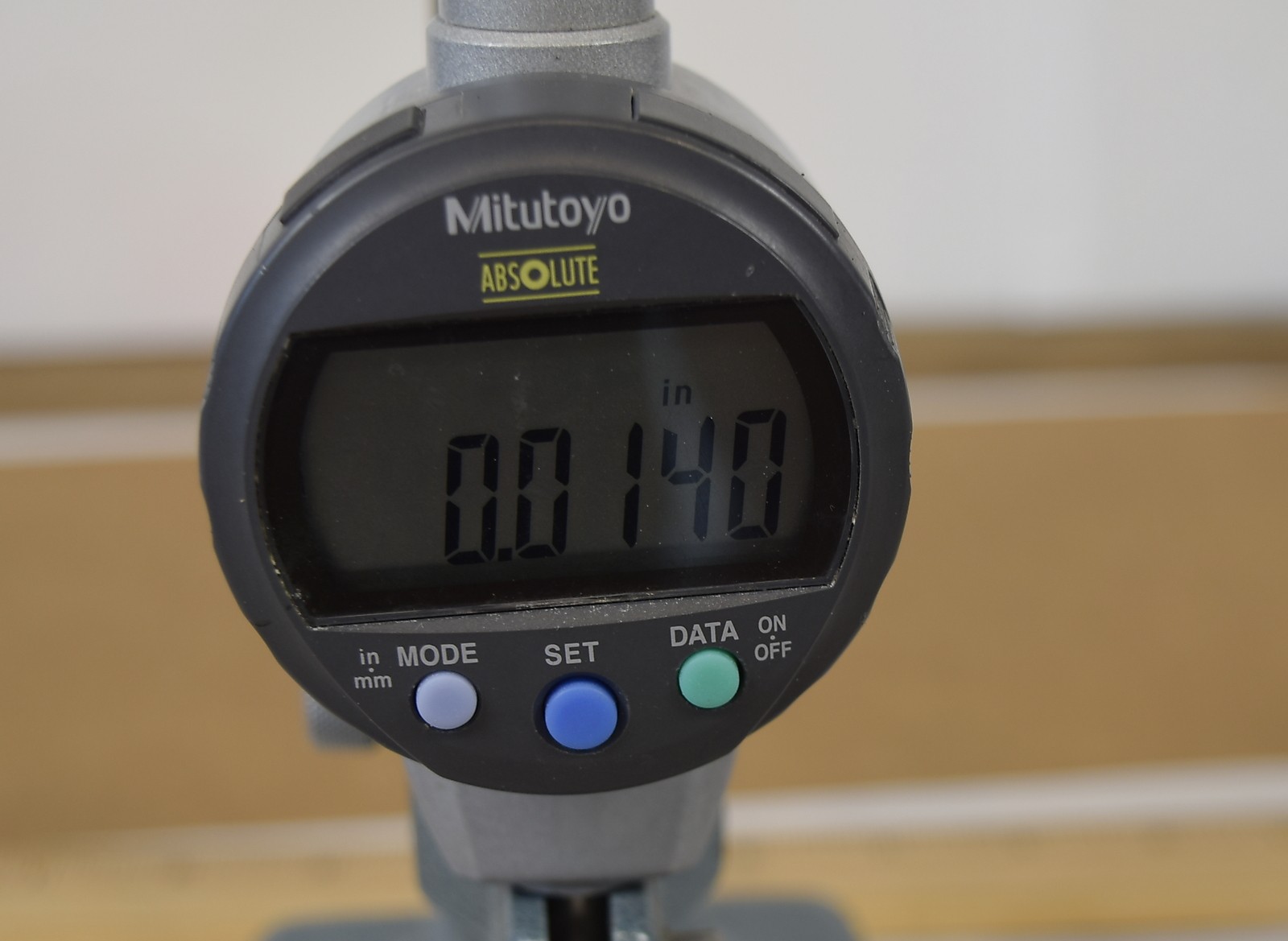

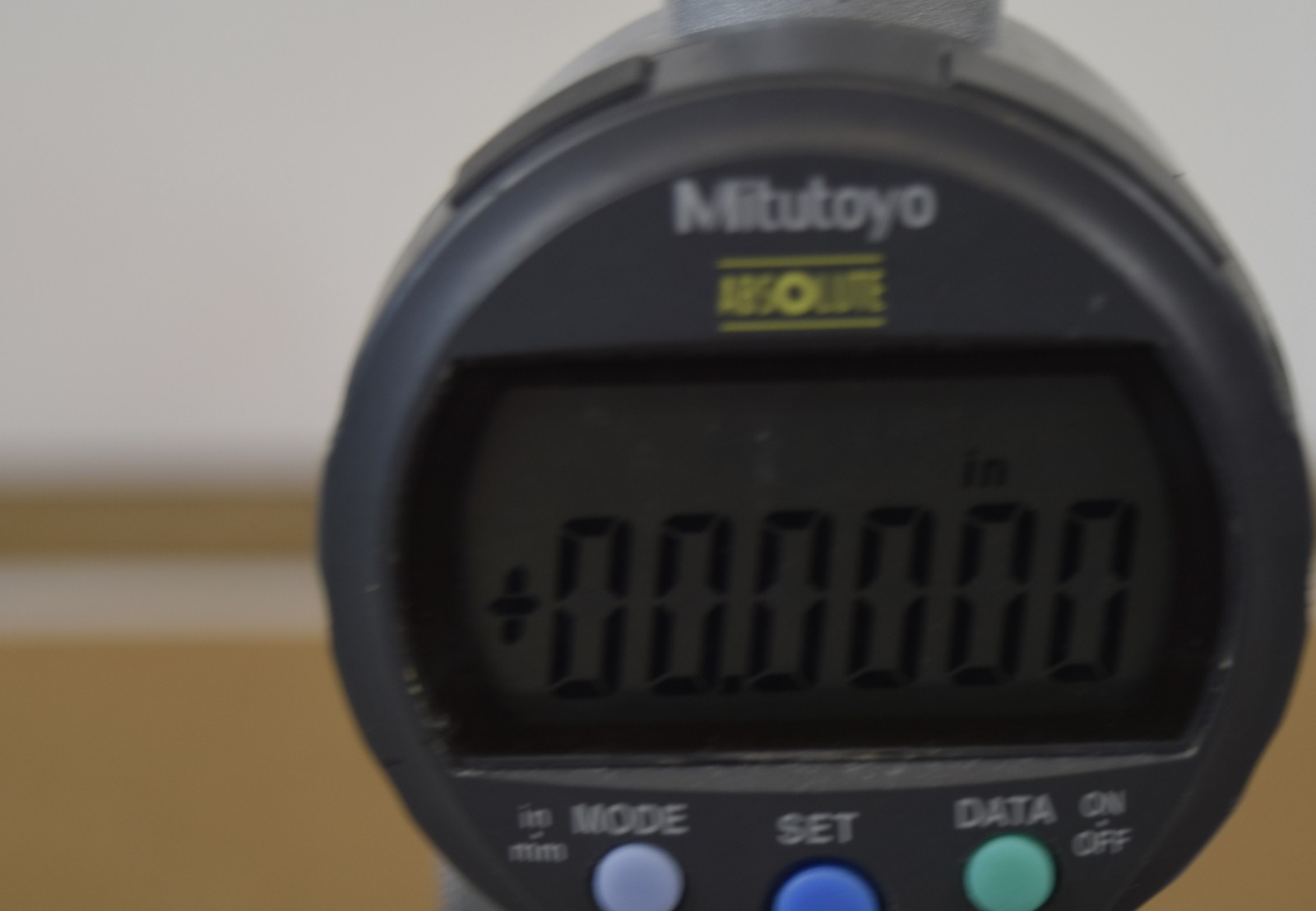

- Tested working as a set. The indicator's display is complete with no missing or dim segments. Zeroed on this stand's anvil it reads 0.0000", and after the spindle is lifted and released it returns to 0.0000" repeatedly, with no more than one count (.0005") of scatter. It retains its absolute origin through a full power-off and power-on with no re-zeroing, counts continuously through the whole 1" travel and back, and agrees with a known reference to within one count. Inch/mm conversion and the MODE, SET and DATA buttons all respond. On the stand, the arm slides and locks solid on the column, the fine-adjust wheel moves it smoothly, and the stem clamp closes on the indicator's 3/8" stem.
- Cosmetic

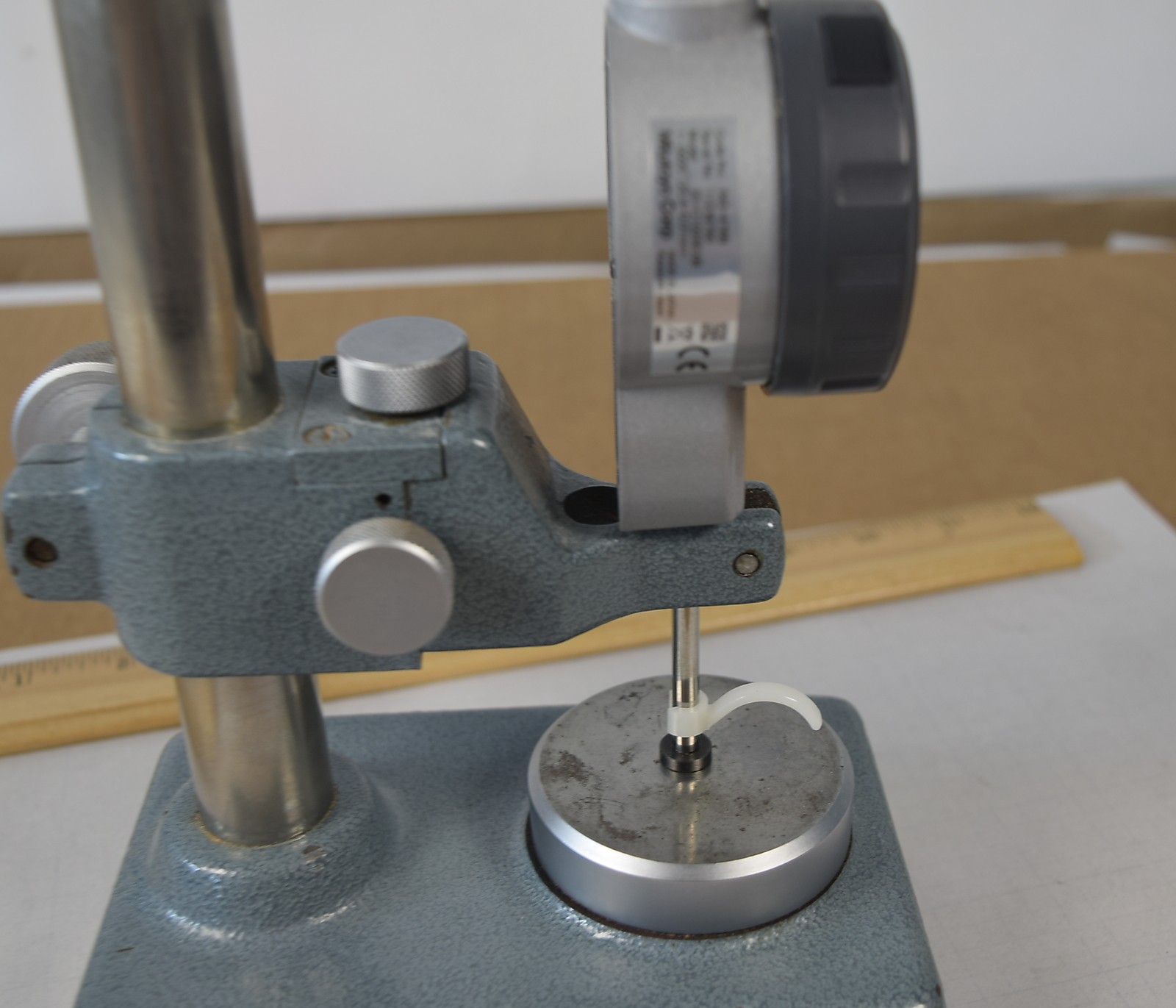

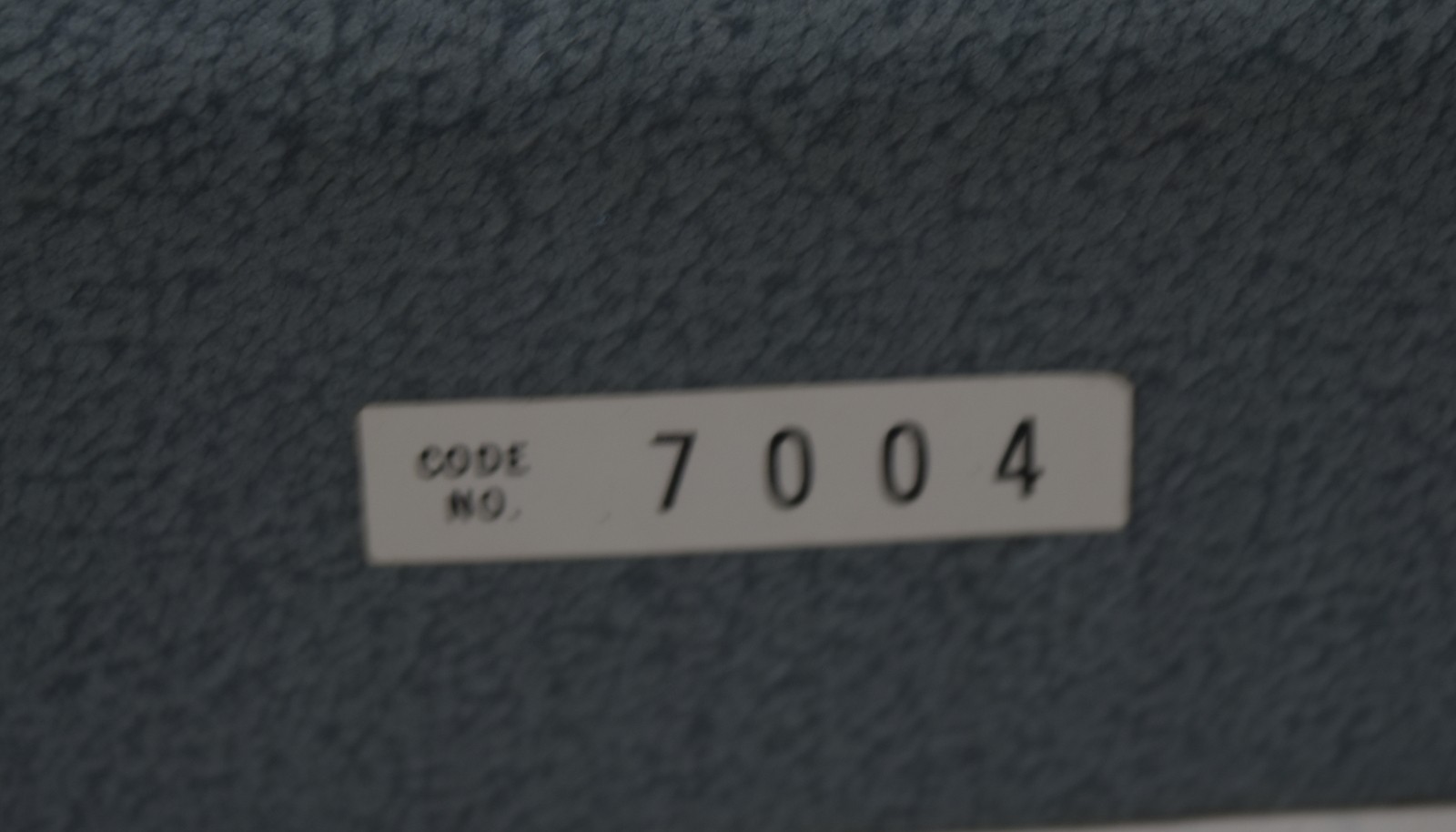

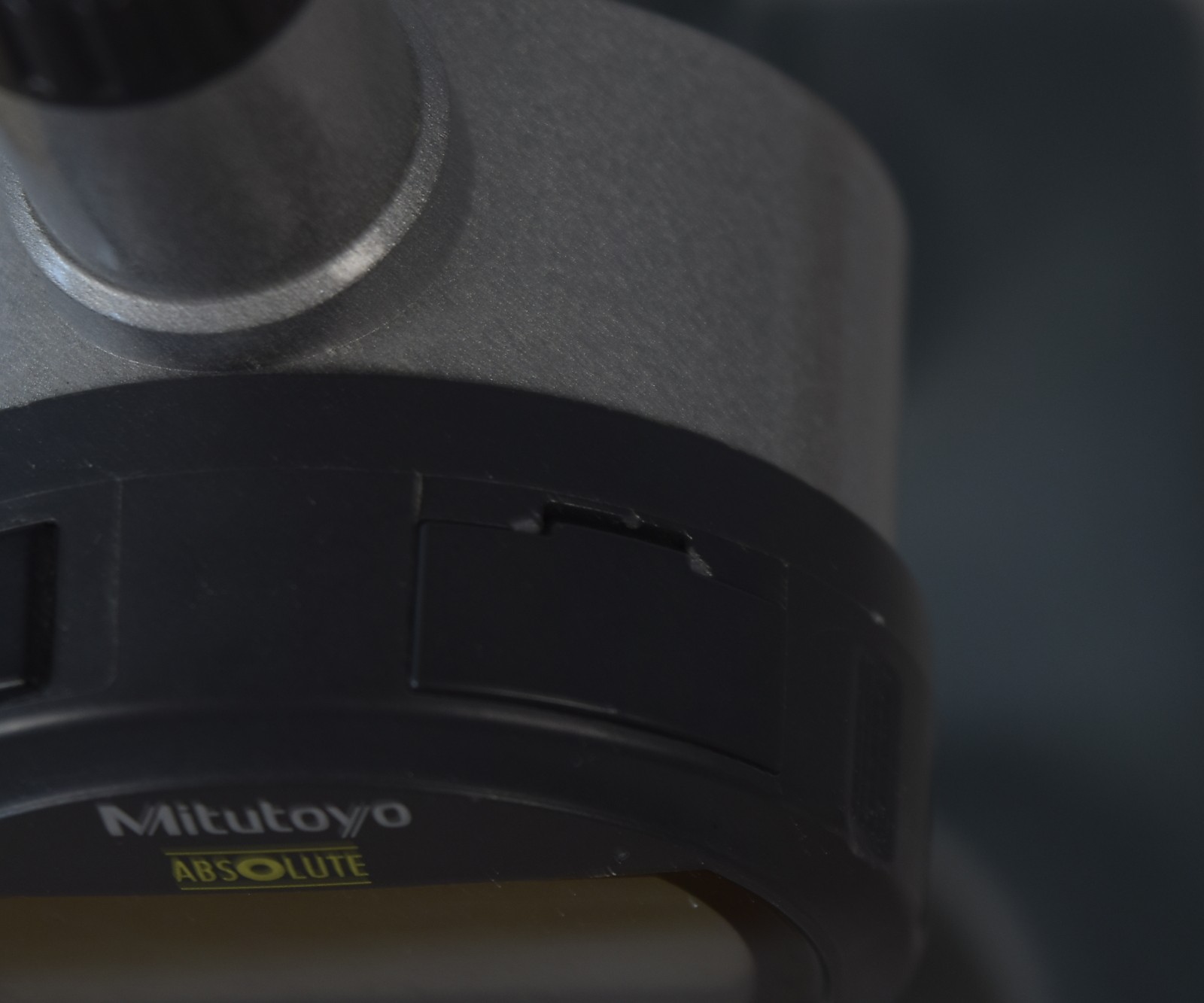

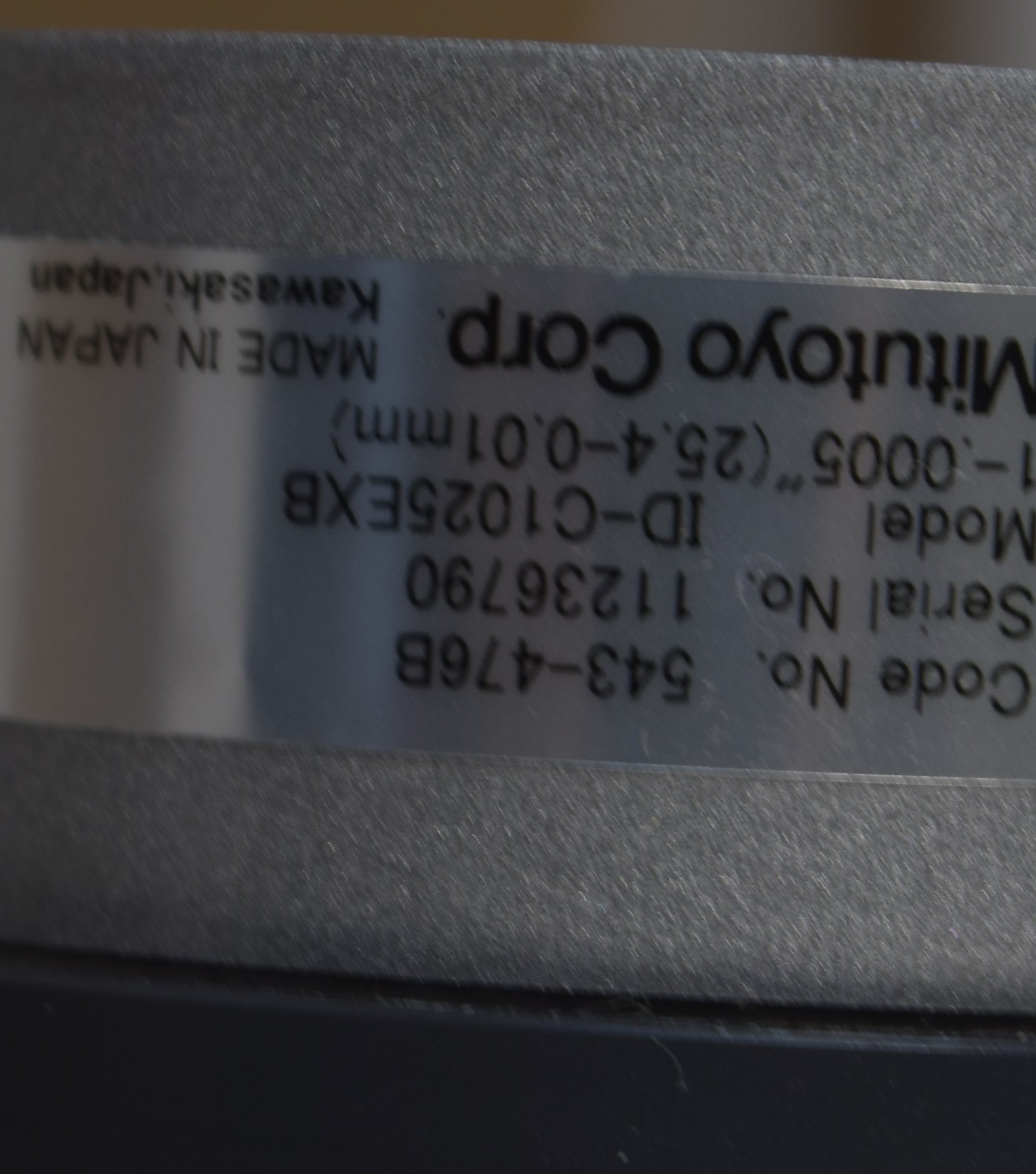

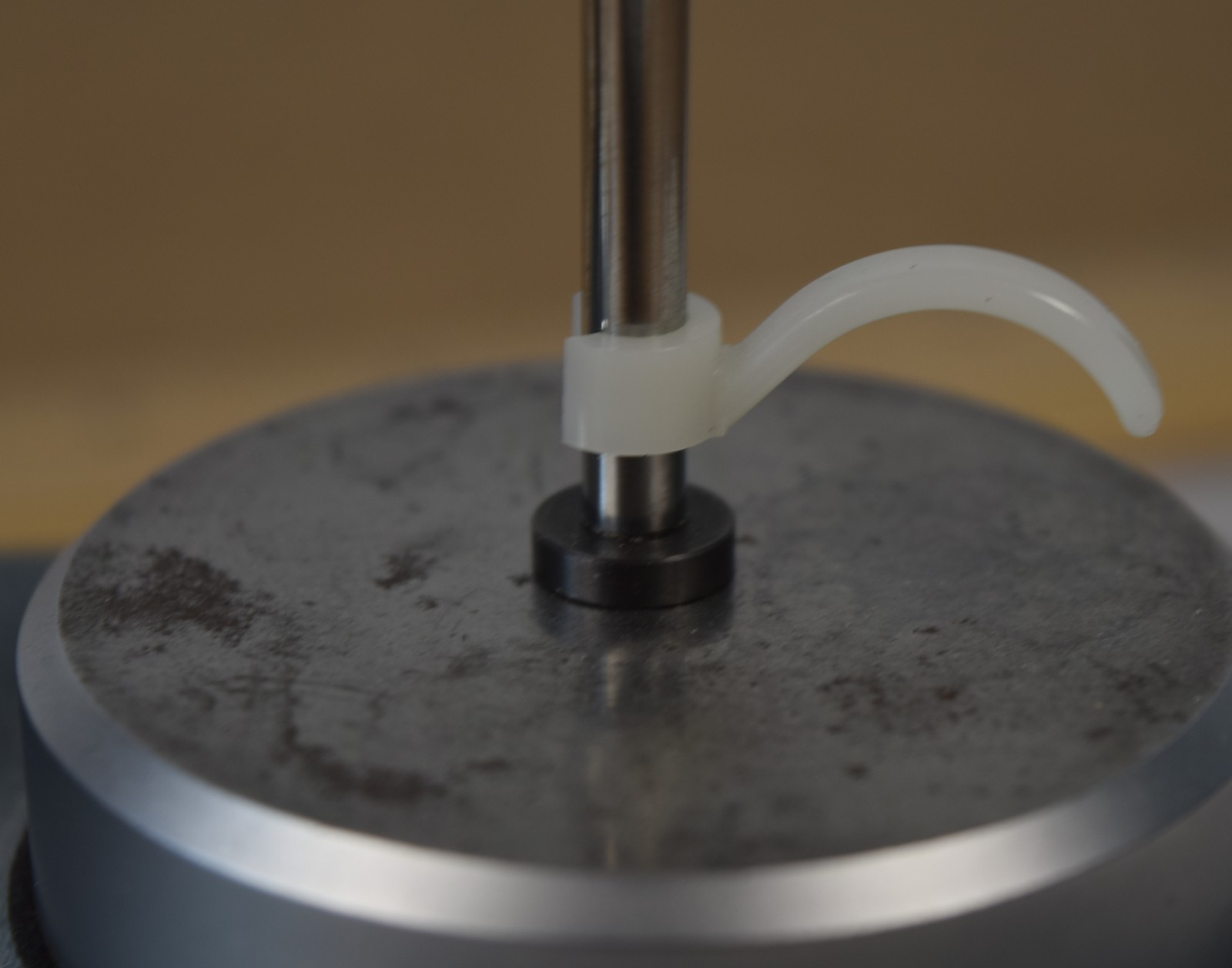

- Light shop wear throughout. The indicator nameplate is fully legible: Code 543-476B, Serial 11236790, Model ID-C1025EXB, Made in Japan. The stand keeps its Mitutoyo nameplate and its CODE NO. 7004 tag. The white tie-wrap visible around the spindle contact in some photos is packing material, not part of the item, and is removed before shipping.
- Tested
- Powers on to a complete display, no missing or dim segments, inch mode · Zeroed on this stand's anvil and read +0.0000" (see photo) · Zero repeatability: spindle lifted and released repeatedly, returned to 0.0000" within one count (.0005") every time · ABSOLUTE origin retained through a power-off / power-on cycle without re-zeroing · Counted continuously through the full 1" travel and back, no stalls or jumping digits · Read a known reference to within one count of its size · Inch to millimetre conversion tracks correctly; MODE, SET and DATA buttons all respond · Stand: arm slides and locks on the column, fine-adjust wheel moves it smoothly, stem clamp grips the 3/8" stem · Nameplates read: indicator Code 543-476B / Serial 11236790 / Model ID-C1025EXB; stand CODE NO. 7004
- Not tested
- Digimatic SPC data output not exercised - no SPC cable here · Not calibrated against traceable standards; no certificate. Checked against a known reference only · Anvil flatness and squareness not checked on a surface plate · Battery life not measured (a fresh SR44 is fitted)
Specifications
- Indicator code
- 543-476B
- Indicator model
- ID-C1025EXB
- Indicator serial
- 11236790
- Range
- 1" / 25.4 mm
- Resolution
- .0005" / 0.01 mm, inch-mm switchable
- Accuracy (spec)
- +/-.001" / 0.02 mm
- Measuring force
- 1.8 N or less
- Series
- ABSOLUTE Digimatic ID-C
- Stem
- 3/8" dia.

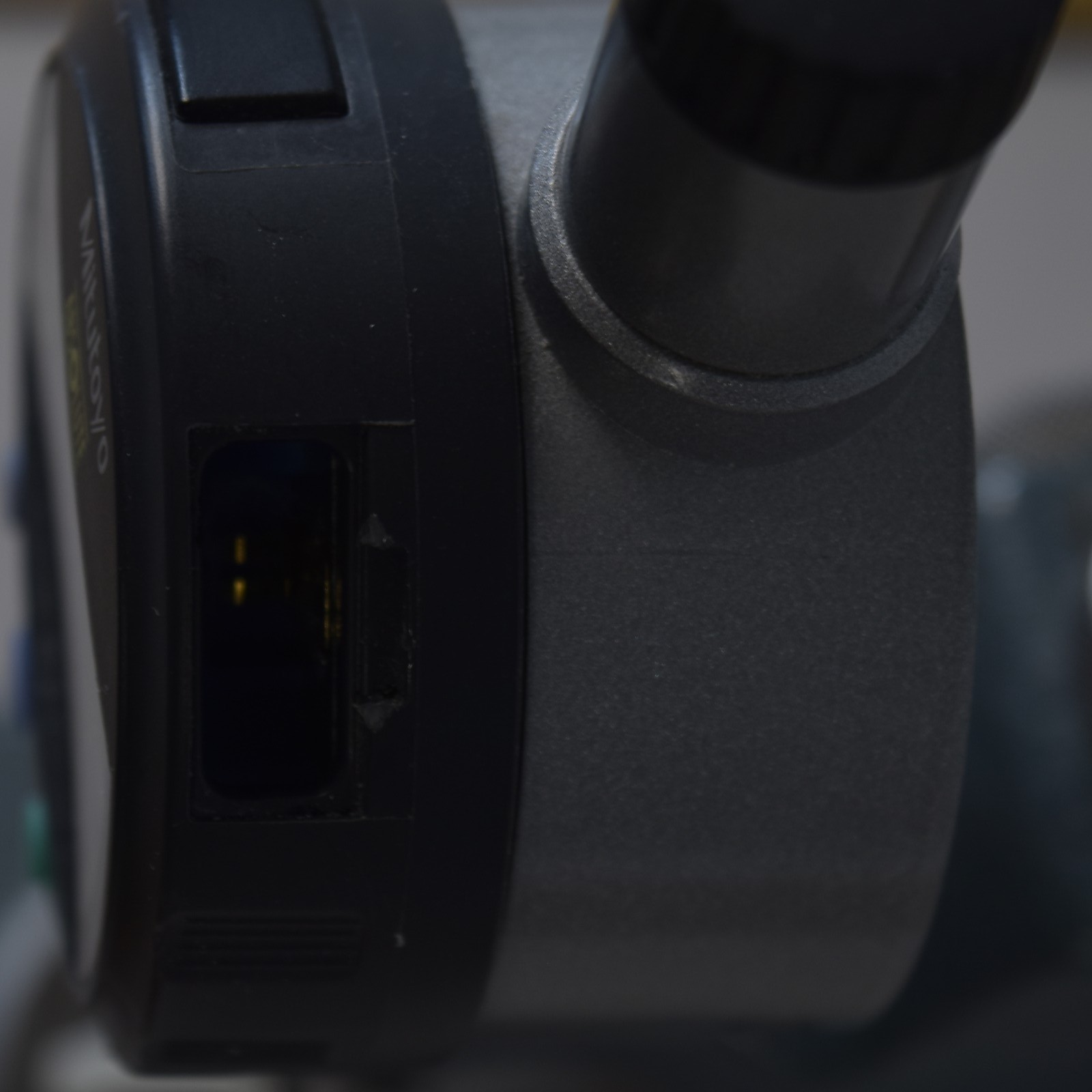

- Output
- Digimatic SPC
- Battery
- SR44 (fresh cell fitted)
- Stand model
- Mitutoyo 7004
- Anvil
- 2-1/4" (approx. 58 mm) dia. flat steel
- Column
- 30 mm dia., approx. 4" (100 mm) usable travel
- Stem clamp
- 3/8" with fine adjust

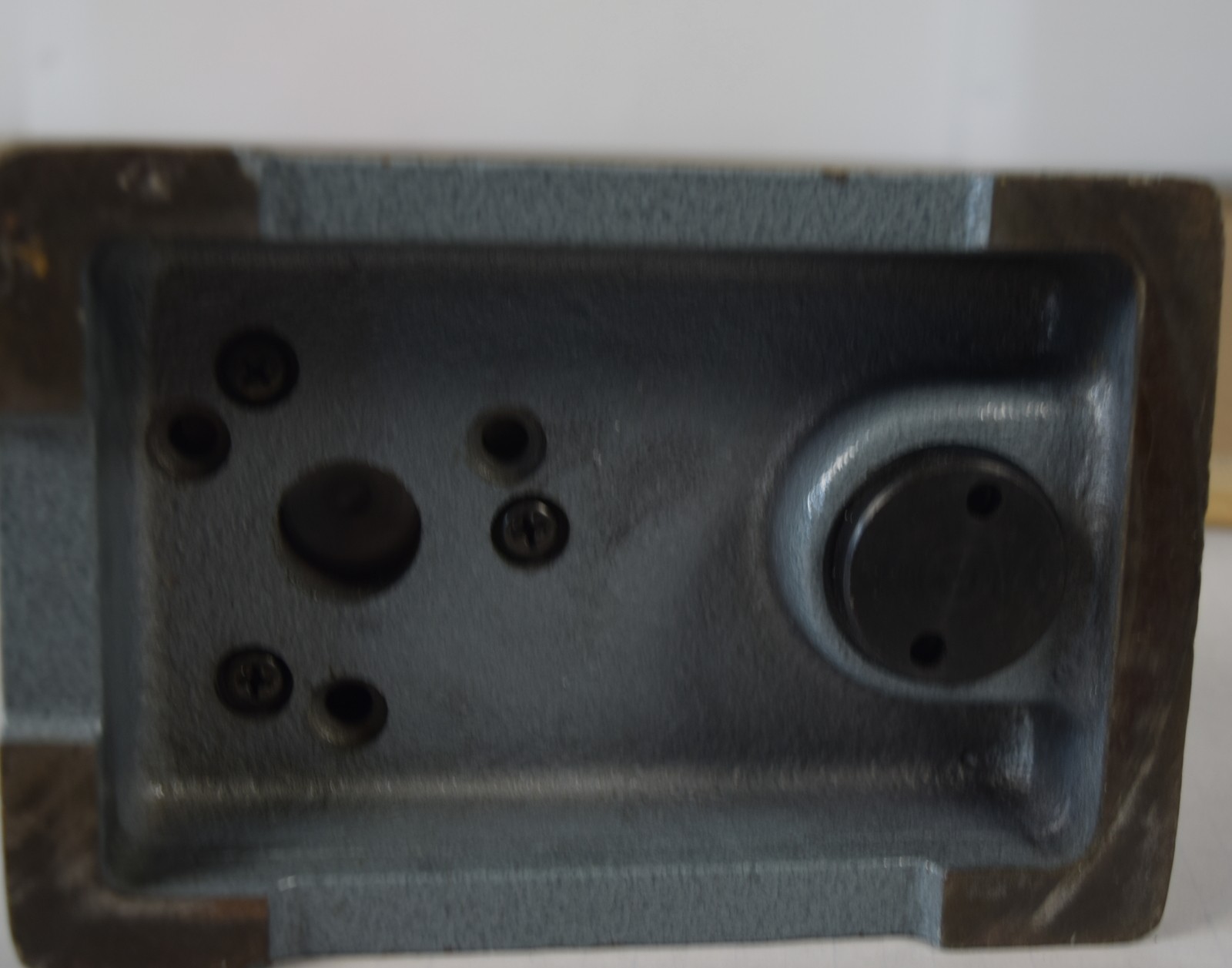

- Stand base
- Cast iron, approx. 6-1/2 x 4-1/4 in
- Set weight
- approx. 10 lb
- Origin
- Made in Japan
