Description
Lab and process test equipment - tested to the level described and honestly noted. This is an obscure, long-discontinued instrument: please read the Tested and Not-Tested sections carefully before you buy. Sold as described.
Condition
Used. Powers on from the supplied AC adapter; the LED display lights and the front-panel mode buttons respond. Measurement accuracy not tested (no yarn or reference standard) and not calibrated. Carry case scuffed; analyzer and sensor head clean with light marks. Includes sensor head, cabling, field bag, case and manual. No software or calibration standard.
Bench report
- Functional

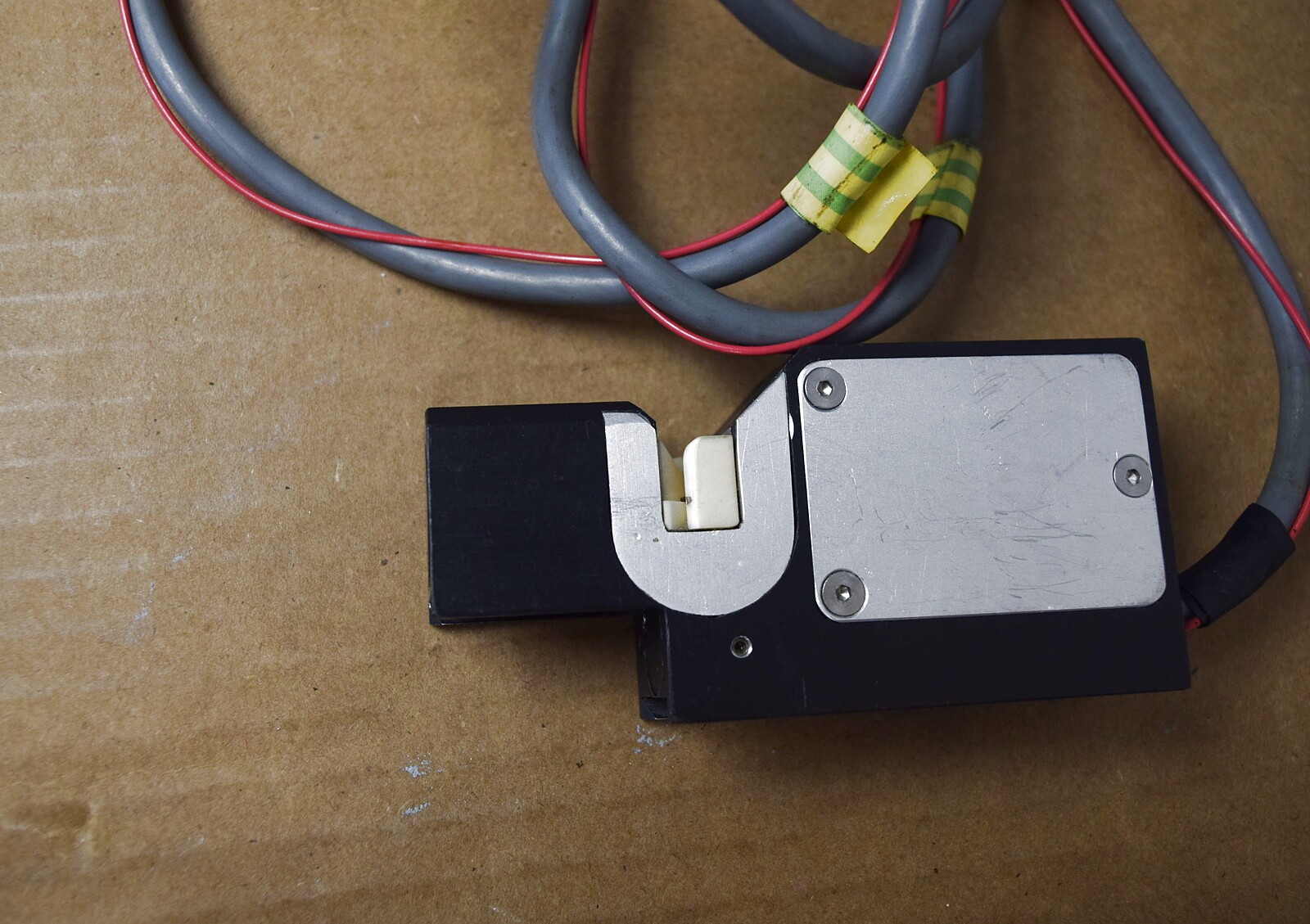

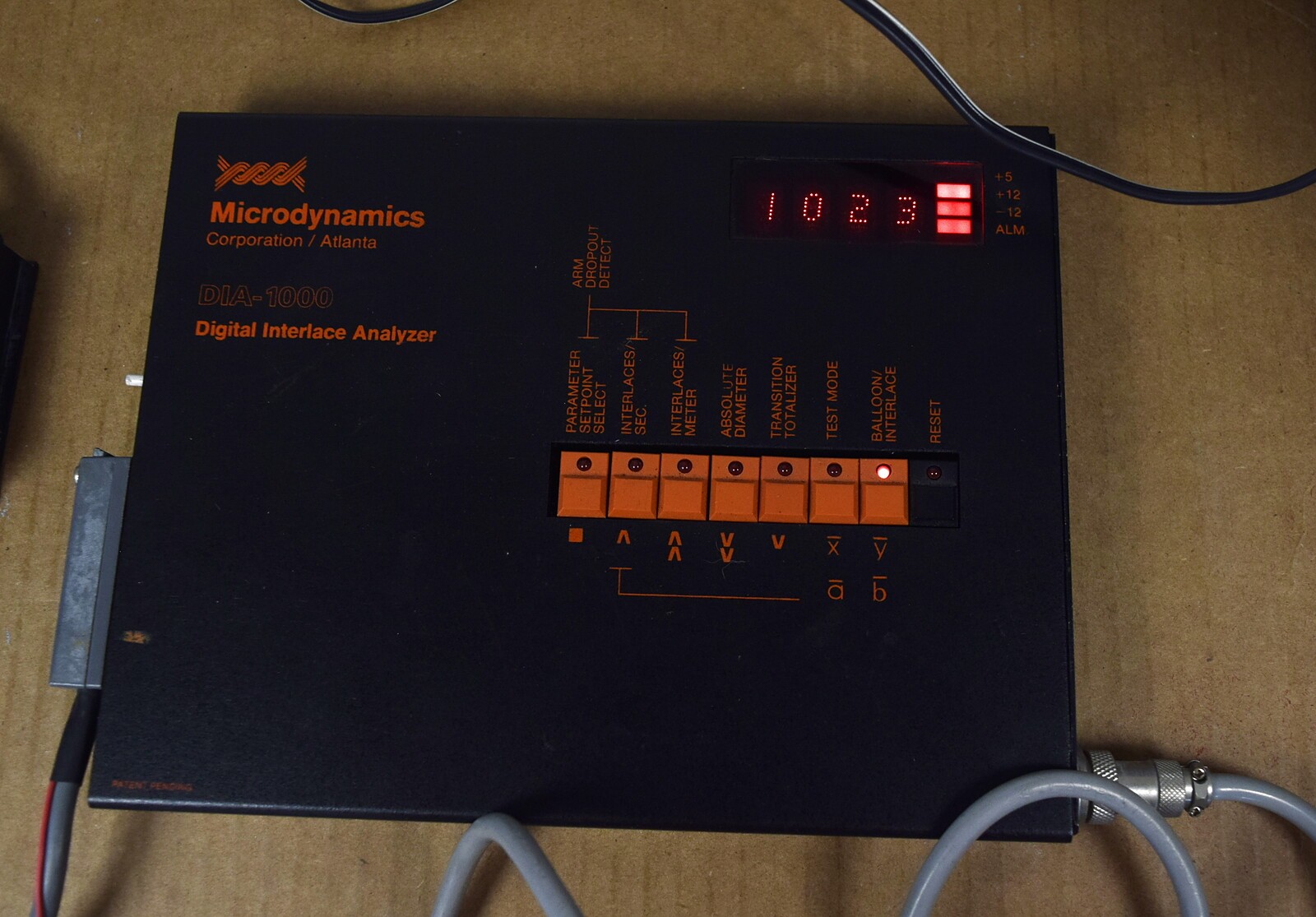

- Powers on from the supplied AC adapter. The four-digit red LED display lights and shows readings, the supply-rail indicator LEDs beside it light, and the front-panel mode buttons respond - BALLOON/INTERLACE was selected and its button LED lit with the display reading 1023. The optical sensor head connects to the analyzer on the supplied cable. Beyond that I could not exercise it: measuring interlace nodes requires running filament yarn through the sensor head, and I have no yarn sample or interlace reference standard here.
- Cosmetic

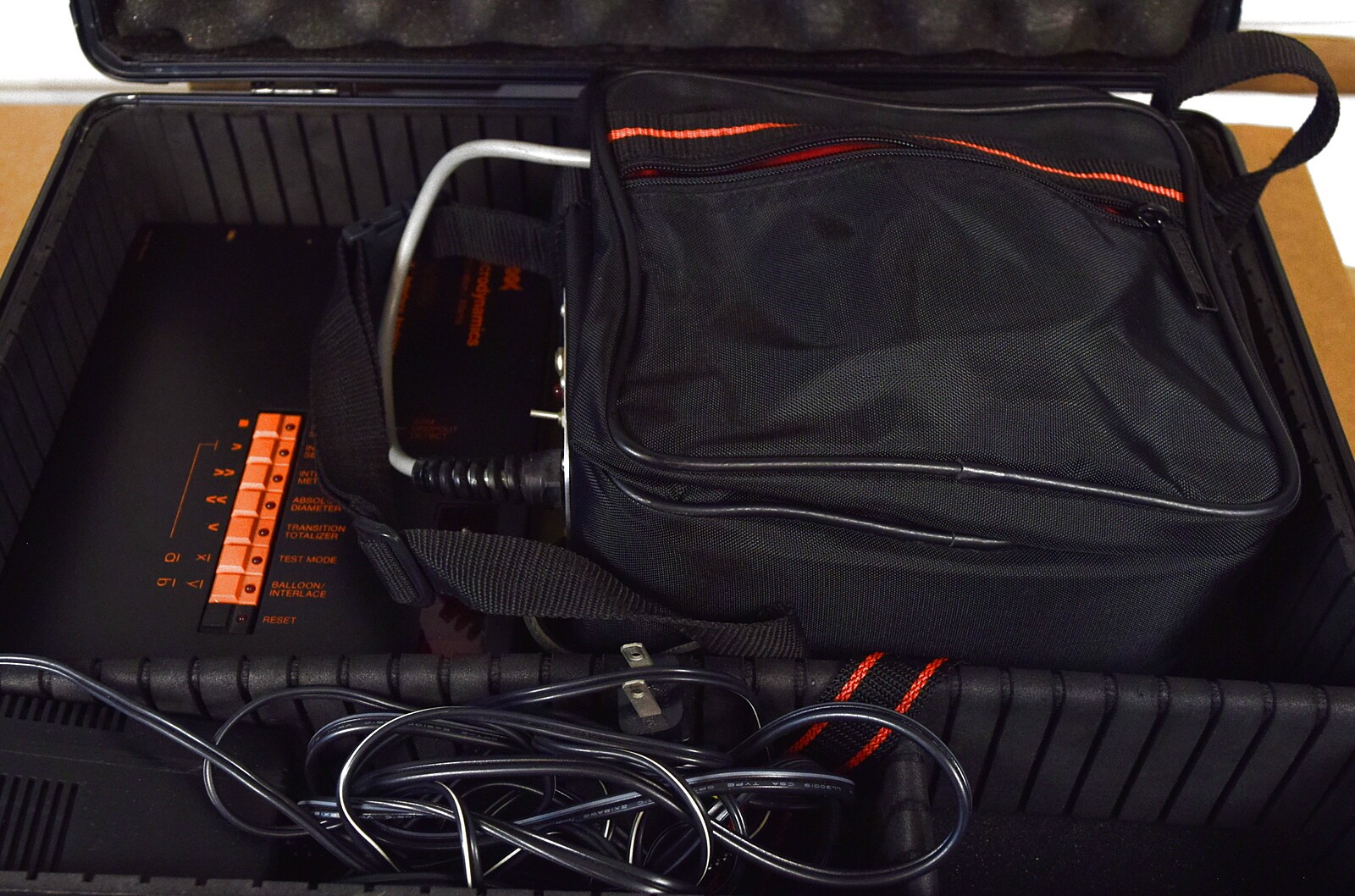

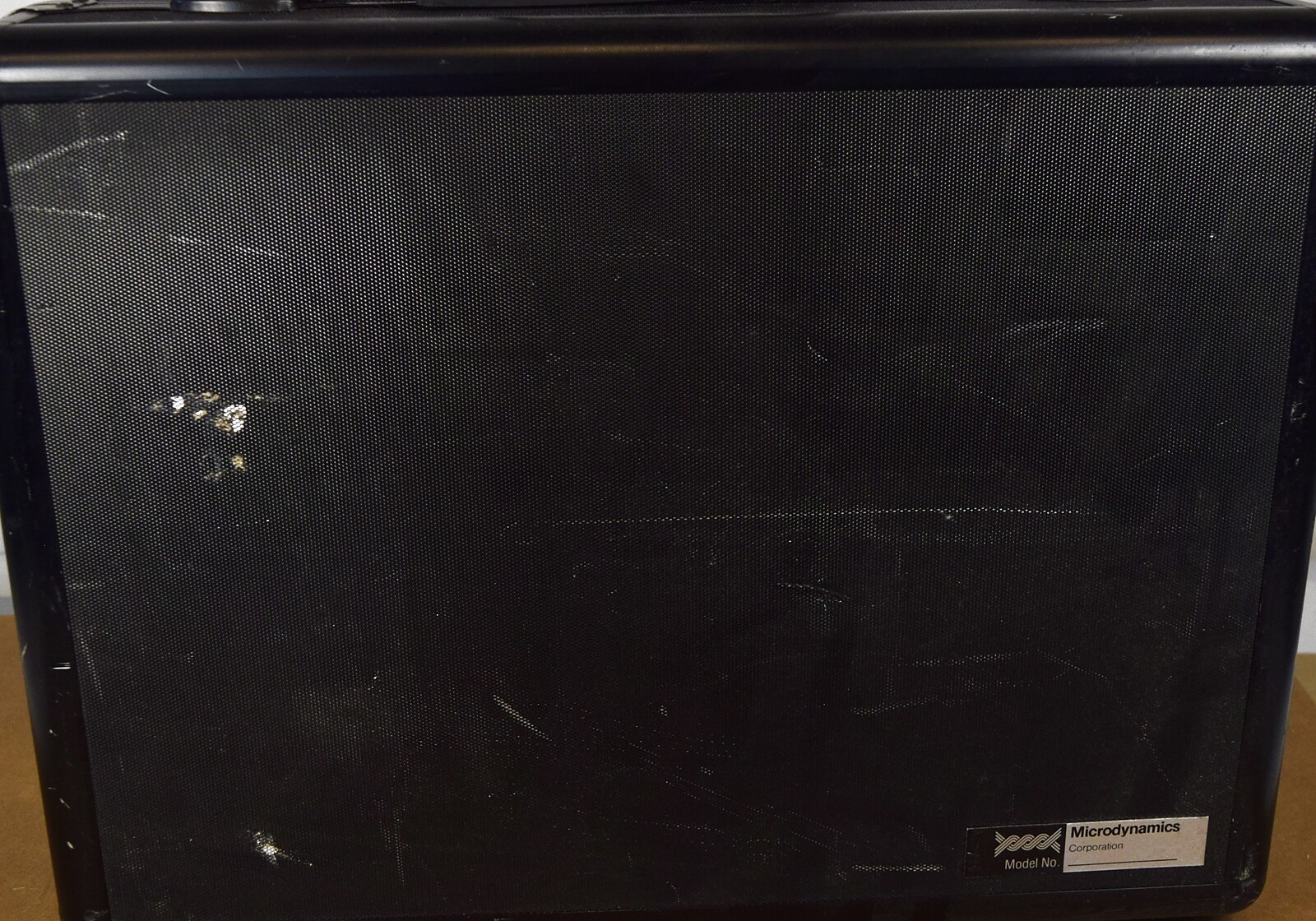

- The hard carry case is scuffed and marked from service use. The analyzer itself is clean with bright, unfaded front-panel graphics. The sensor head and its aluminium face show light handling marks. The padded field bag and the manual are intact; the manual's pages are clean and complete.
- Tested
- Powers on from the supplied AC adapter. · The four-digit red LED display lights and shows readings. · Supply-rail indicator LEDs next to the display light. · Front-panel mode selection responds - BALLOON/INTERLACE selected, its button LED lit, display reading 1023. · The optical sensor head mates to the analyzer with the supplied cable.
- Not tested

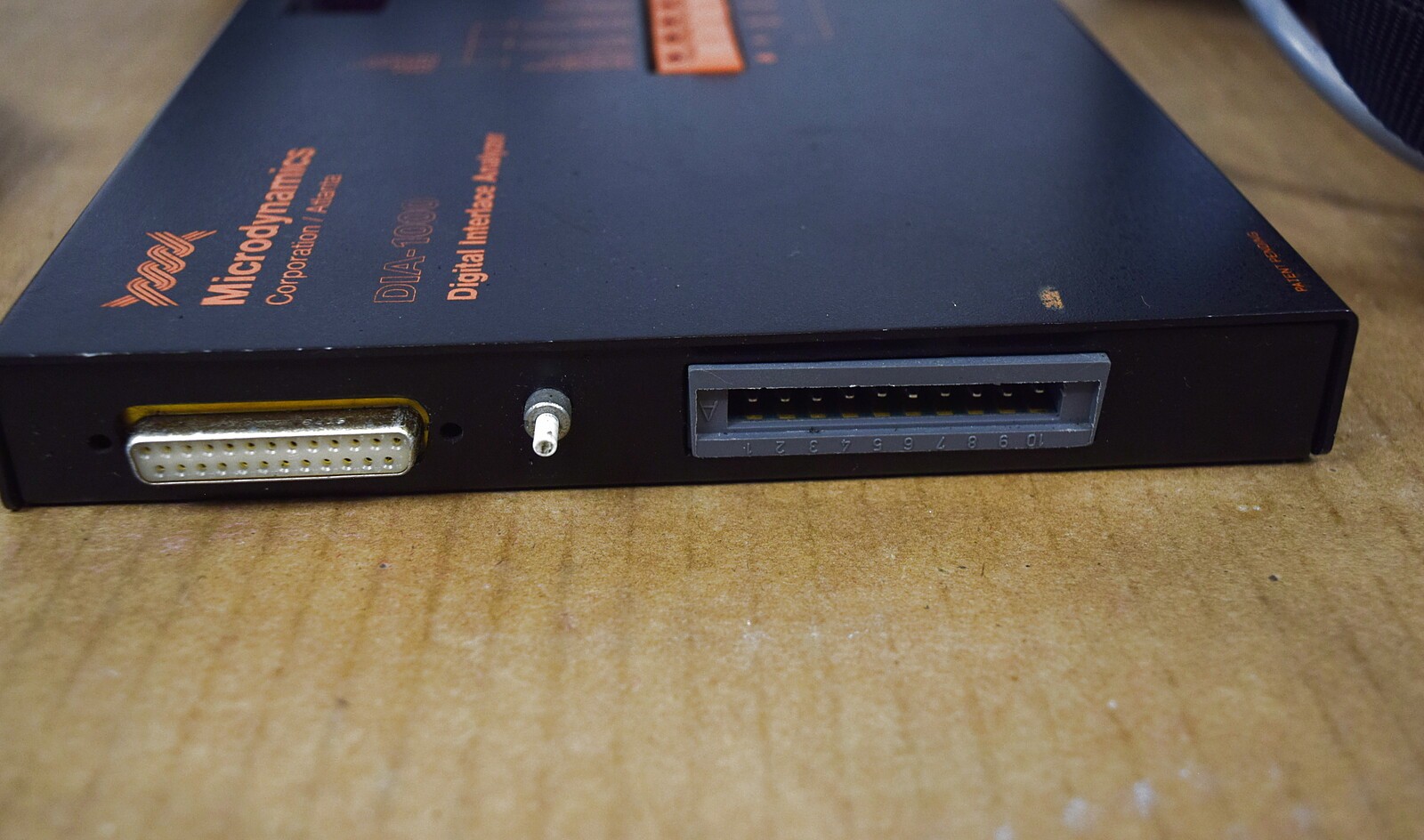

- Measurement accuracy - no filament yarn or interlace reference standard was run through the sensor head. · Calibration - not certified, and there is no factory calibration path for this instrument. · The remaining measurement modes (interlaces per second, interlaces per meter, absolute diameter, transition totalizer, test mode) were not run against a known sample. · The rear DB-25 connector, edge connector and coaxial jack were not exercised. · The alarm relay, real-time clock and proximity speed input described in the manual were not tested.
Specifications
- Brand
- Microdynamics
- Type
- Digital Interlace Analyzer
- Model
- DIA-1000
- MPN
- DIA-1000
- Power Source
- AC Adapter
- Includes

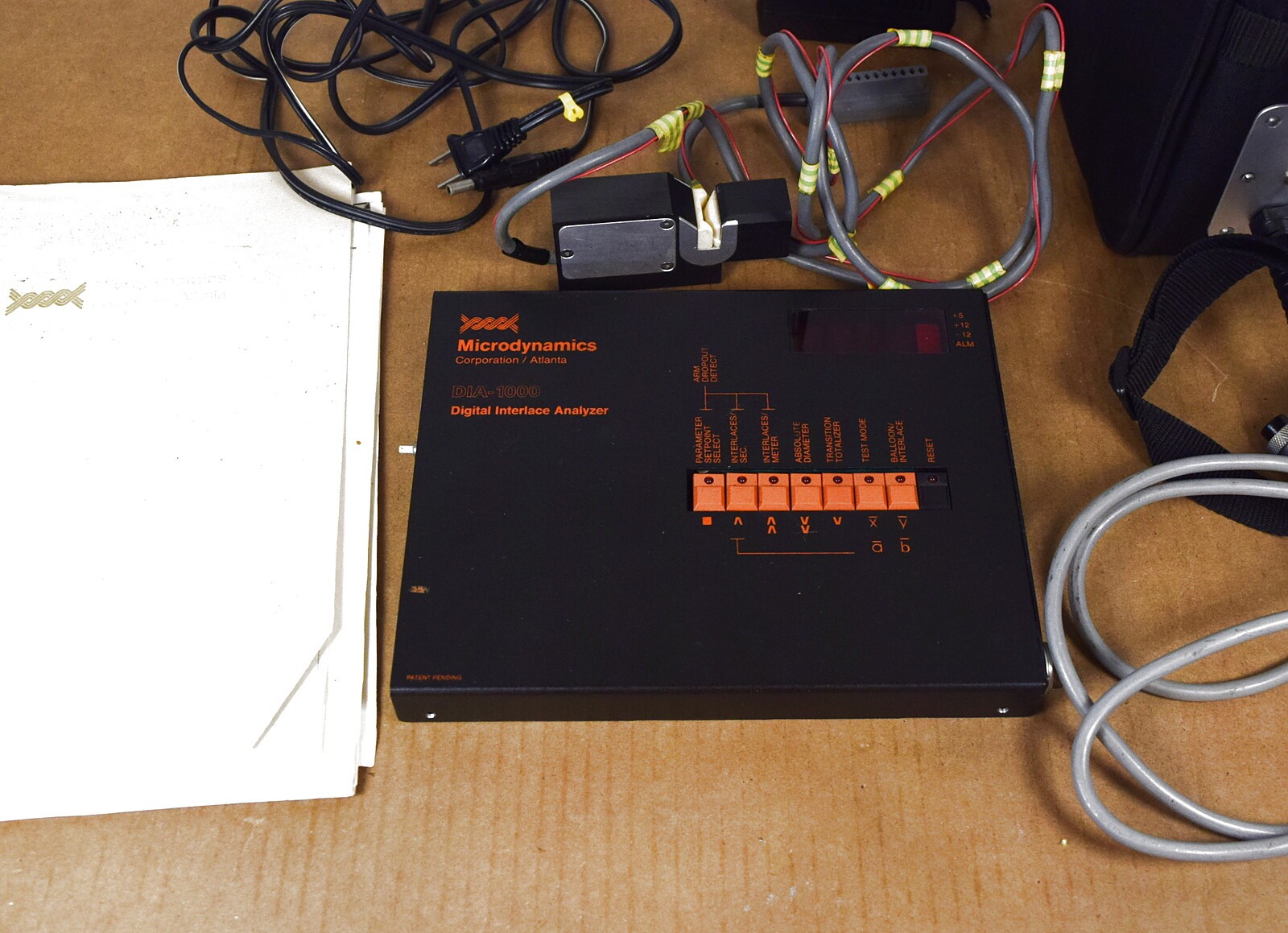

- Sensor Head, Cabling, Field Bag, Case, Manual
- Country of Origin
- United States
- Manufacturer
- Microdynamics Corporation, Atlanta, Georgia
- Instrument type
- Digital Interlace Analyzer - filament yarn interlace / entanglement measurement
- Sensing principle

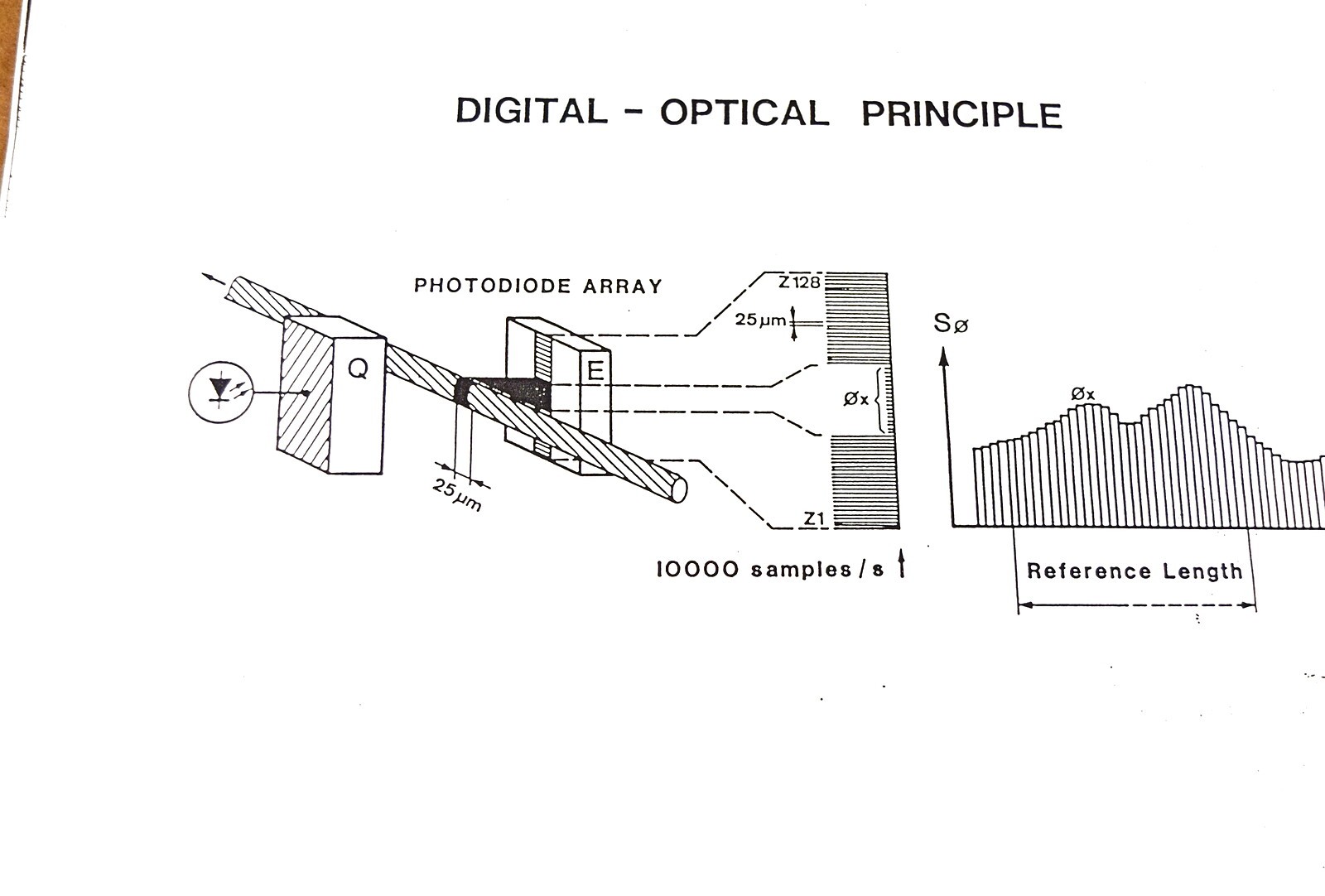

- Digital-optical, photodiode array, 10,000 samples per second (per the manual)
- Measurement modes
- Interlaces per second, Interlaces per meter, Absolute diameter, Transition totalizer, Balloon/interlace, Test mode
- Other functions
- Parameter setpoint select, Arm dropout detect, Alarm relay, Real-time clock, Proximity speed input
- Display
- Four-digit red LED with +5, +12, -12 rail and ALM indicators
- Rear I/O
- DB-25 connector, edge connector, coaxial jack
- Sensor connection

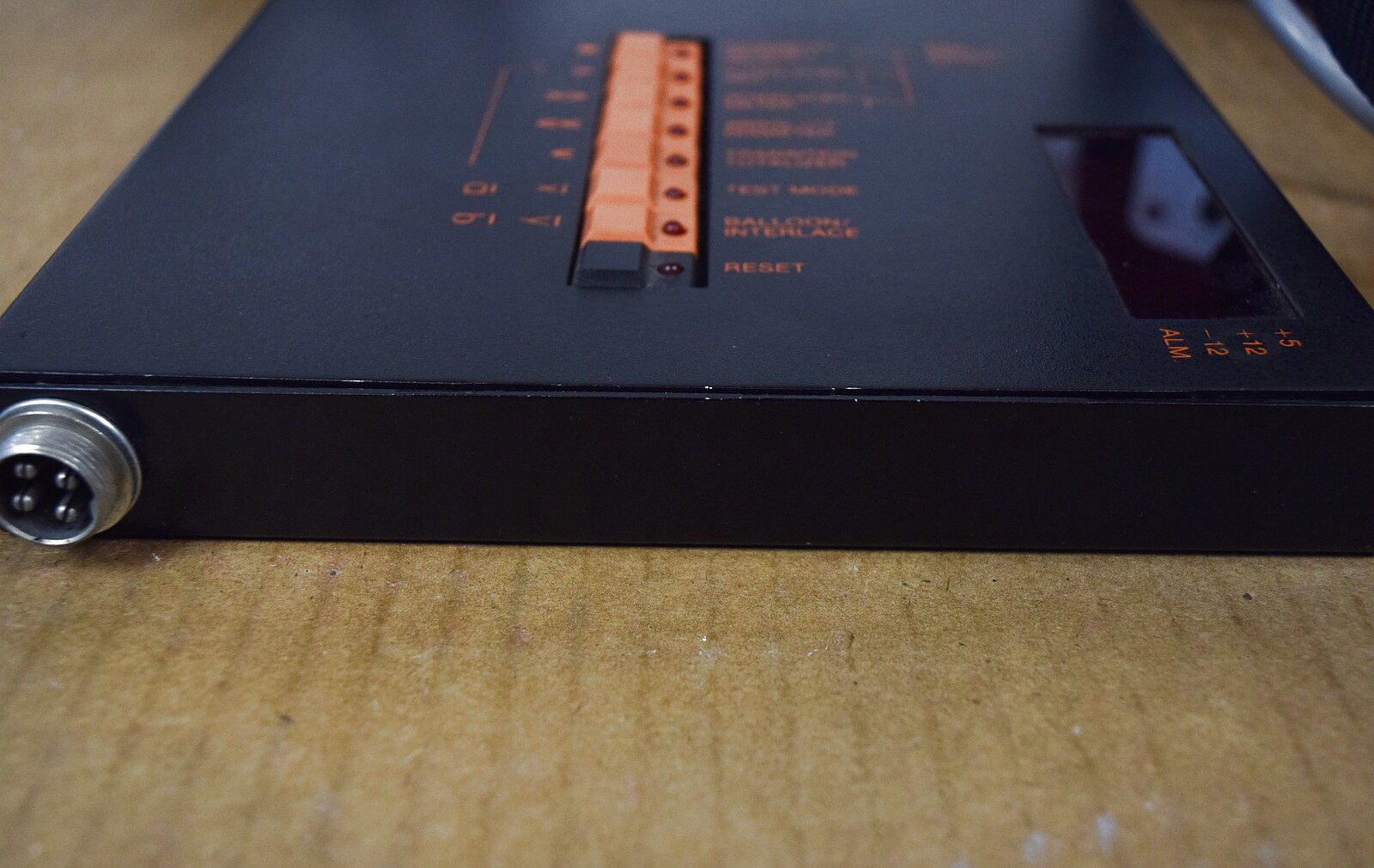

- 4-pin circular connector on the side panel
- Documentation

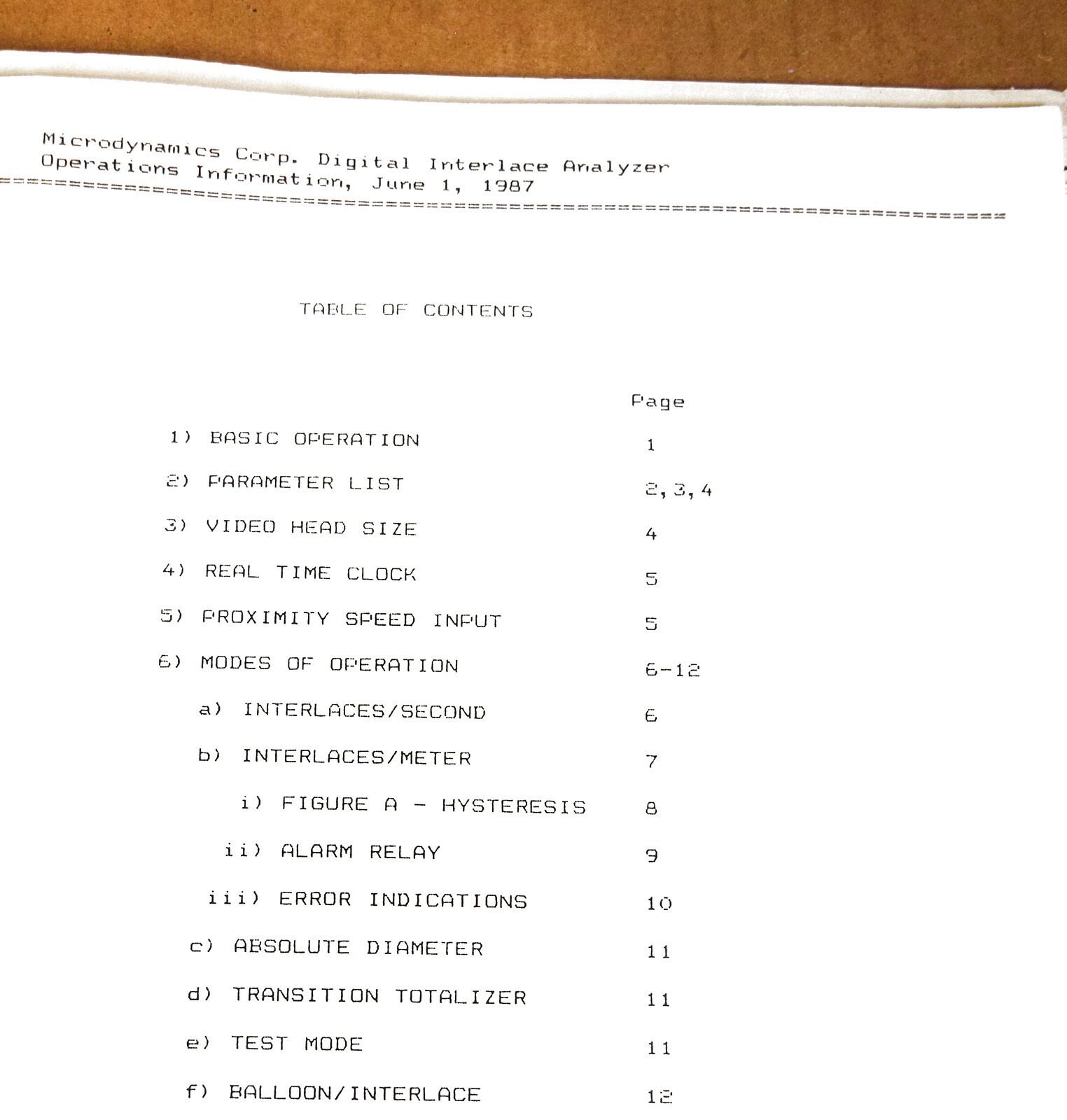

- Operations Information manual, June 1, 1987
- Condition
- Used - powers on; measurement accuracy not verified
