Description
A complete three-piece mobile install pulled from fleet service. It powers on. It is NOT programmed, and I do not program radios. Read that before you buy.
Bench report
- Functional
- Powers on. Both the deck and the control head come up when power is applied, and the display lights. The control head was photographed powered up so you can see the screen for yourself. No transmit, receive, audio, or alignment testing was performed beyond that power-on check.
- Cosmetic

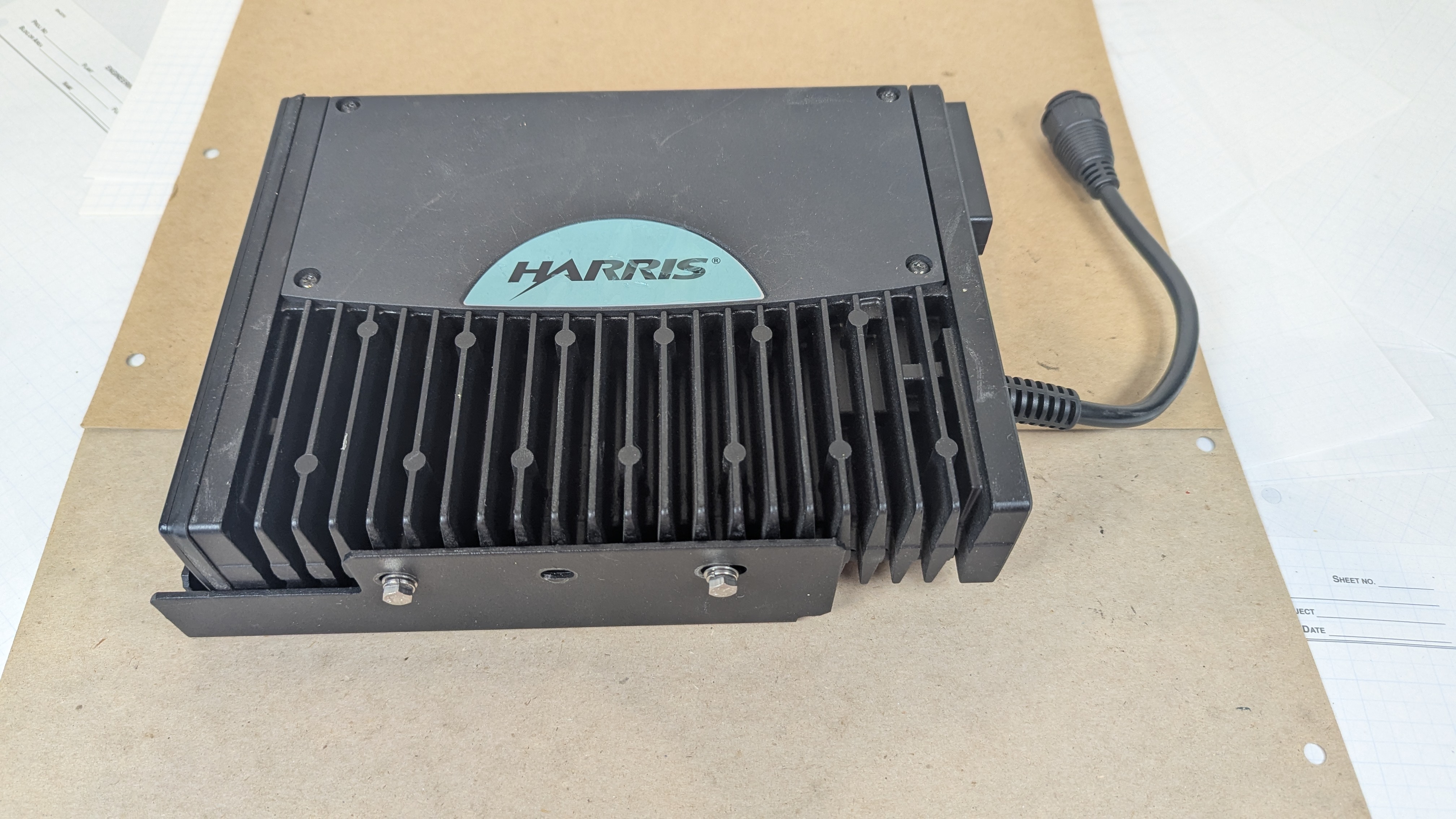

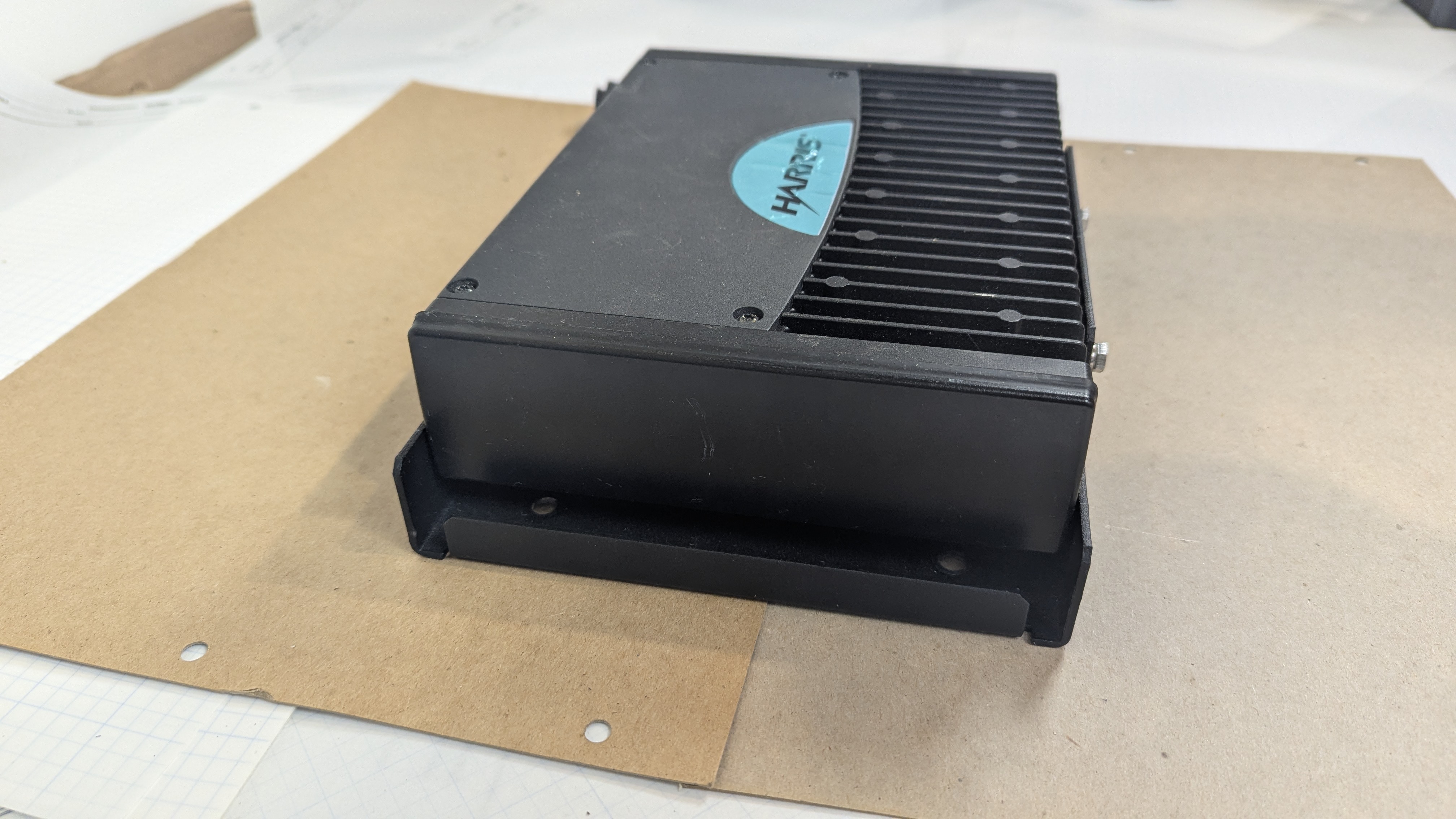

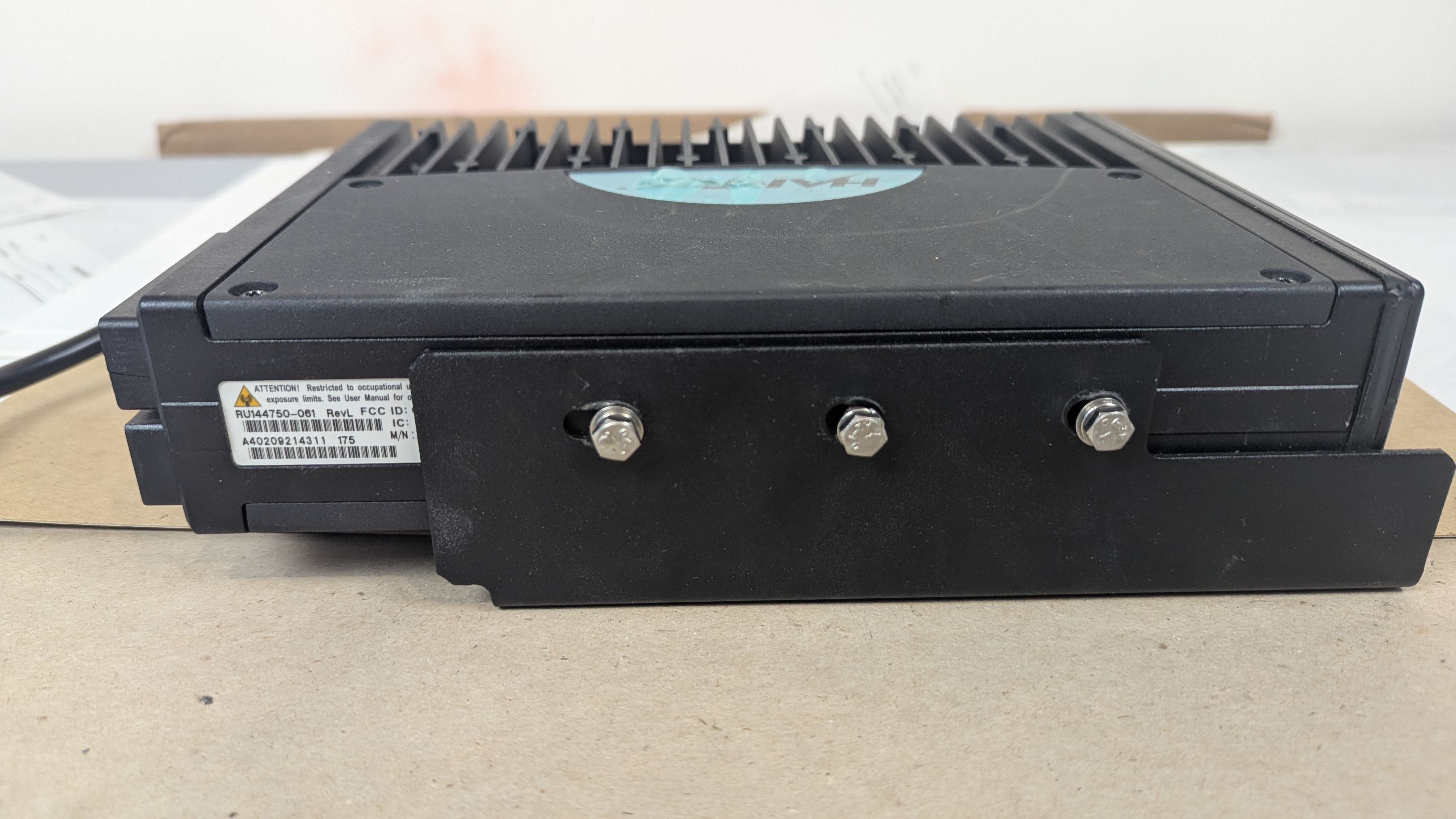

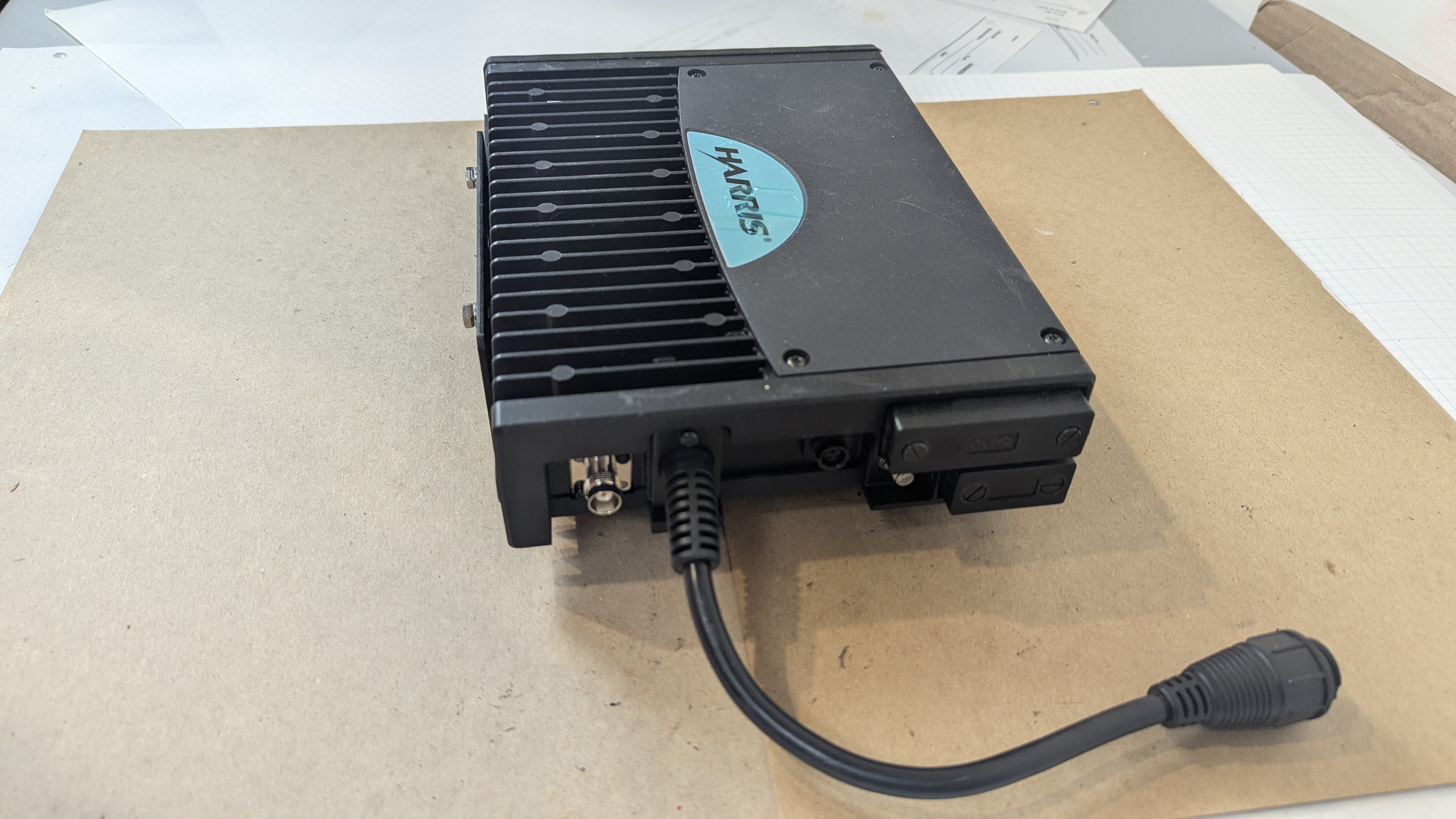

- Used fleet-vehicle condition. Light scuffs on the deck housing and the control-head bezel. This deck wears the teal Harris badge rather than the silver one. A cosmetic badge variant, nothing more. The deck nameplate is photographed, though the mounting bracket covers the right-hand end of the label in that shot; I lifted the bracket and read it directly to confirm the model. Wants a wipe-down, nothing else.
- Tested

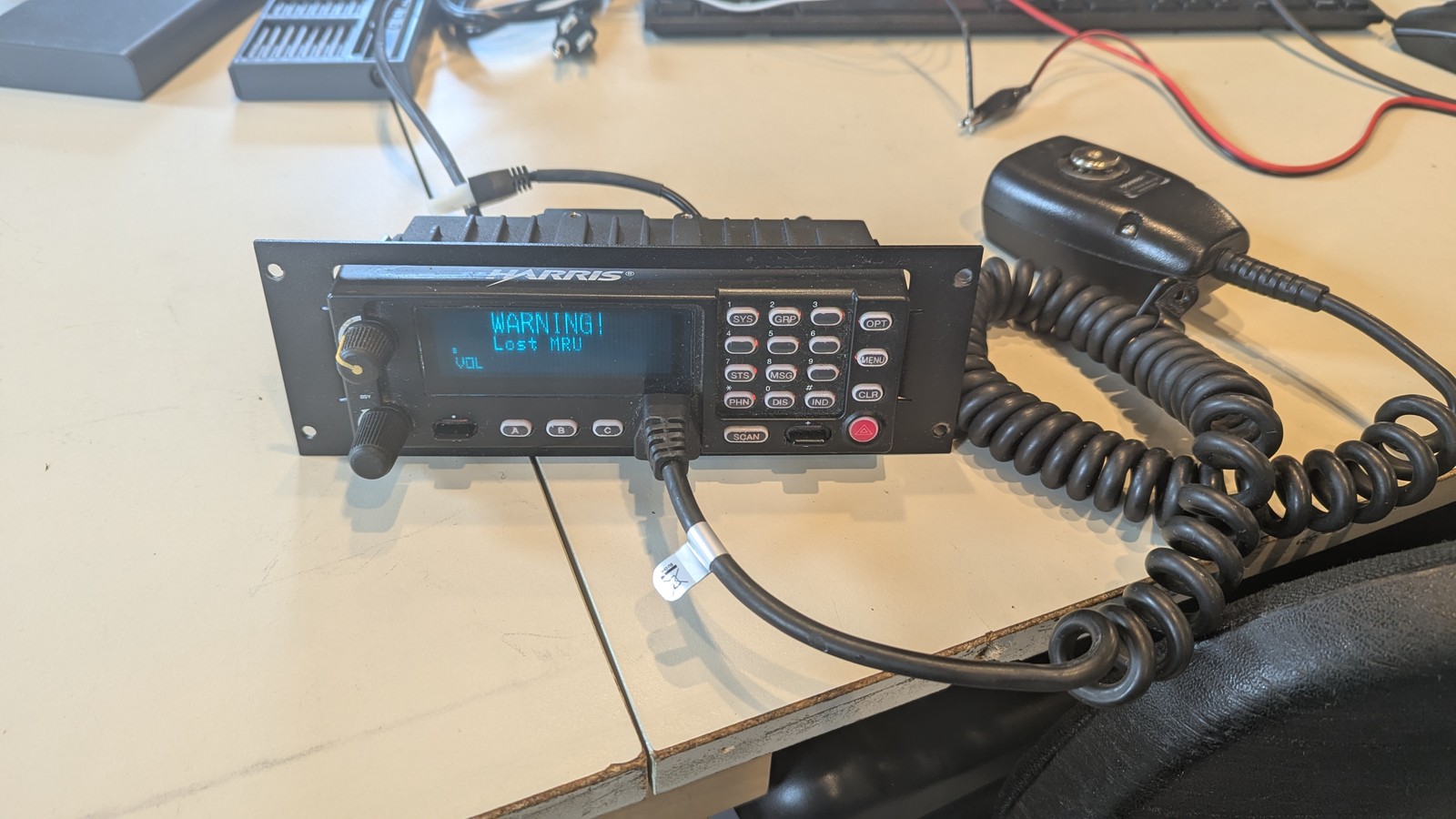

- Deck powered on 2026-08-27. Comes up with power applied · Control head powered on a bench supply and photographed. The display lights and every character is legible. The screen reads "WARNING! Lost MRU", which is simply the head reporting that no radio deck is attached: it was powered on its own for that photo, not wired to the deck. That is the expected message for a control head running standalone, not a fault. · Power cable present, intact, and mated to the deck · Harris hand mic attached on an intact coiled cord · Deck nameplate read directly off the unit to confirm model and serial · Speaker leads terminated in a 2-pin connector. Checked, not cut or spliced · All three pieces photographed individually plus a full bundle shot
- Not tested
- NOT PROGRAMMED. No codeplug loaded, and no programming service is offered with this sale · Transmit power and deviation NOT measured · Receive sensitivity NOT tested · Audio quality through the mic or speaker NOT tested · Alignment NOT checked and NOT performed · P25 or trunked operation NOT verified on any system · Speaker NOT audio-tested, though its leads are terminated in a 2-pin connector rather than bare
Specifications
- Model
- Harris XG-75M / M7300 / M5300
- Part number
- RU144750-061 Rev L
- Serial
- A40209214311
- Band
- 700 / 800 MHz
- RF power
- 35 W
- Control head
- Harris CU23218-0004 Rev K, S/N 96054705

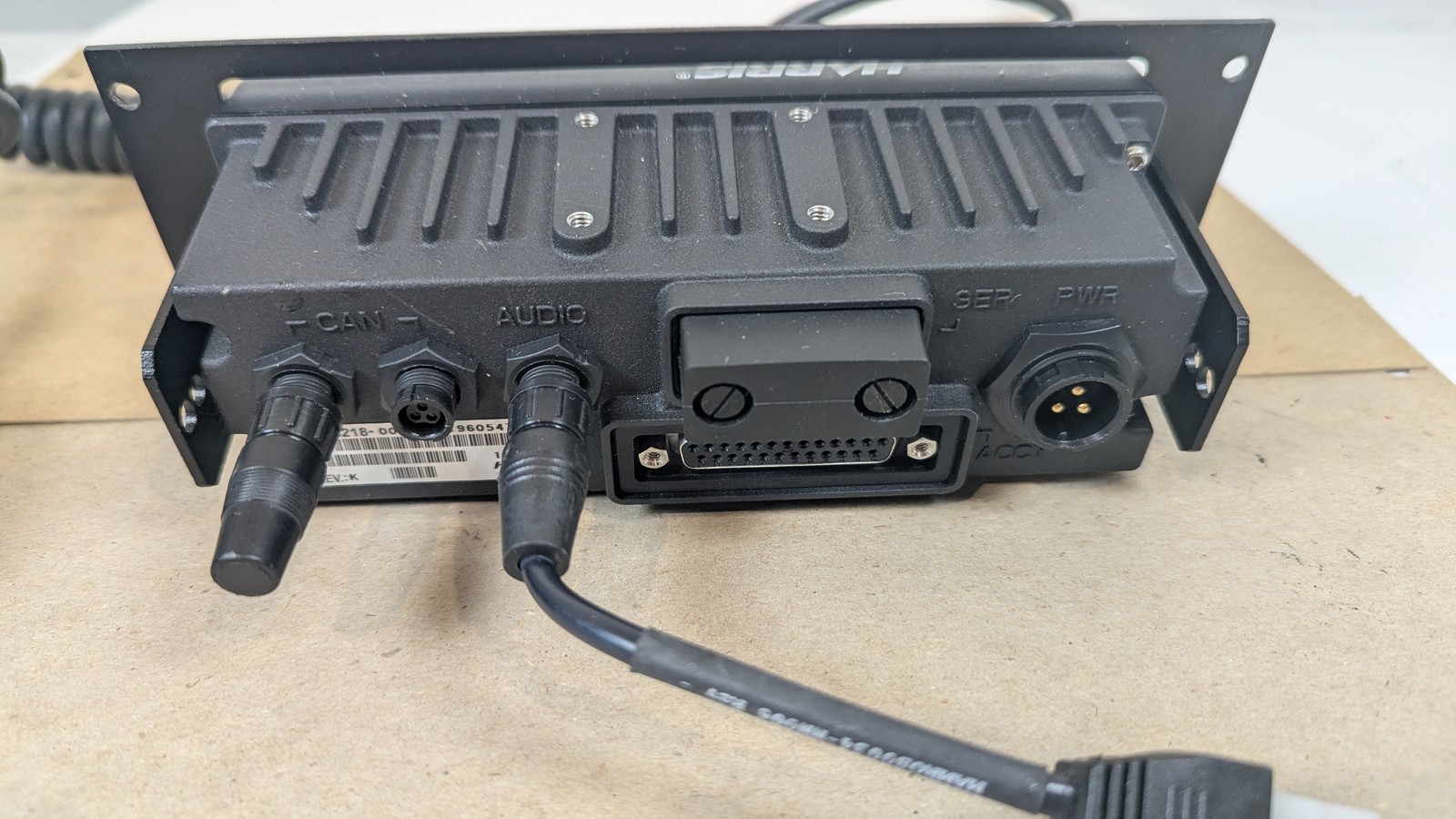

- Control head I/O
- CAN, 4-pin circular audio, DB9 serial, DB25, 4-pin accessory power
- Speaker

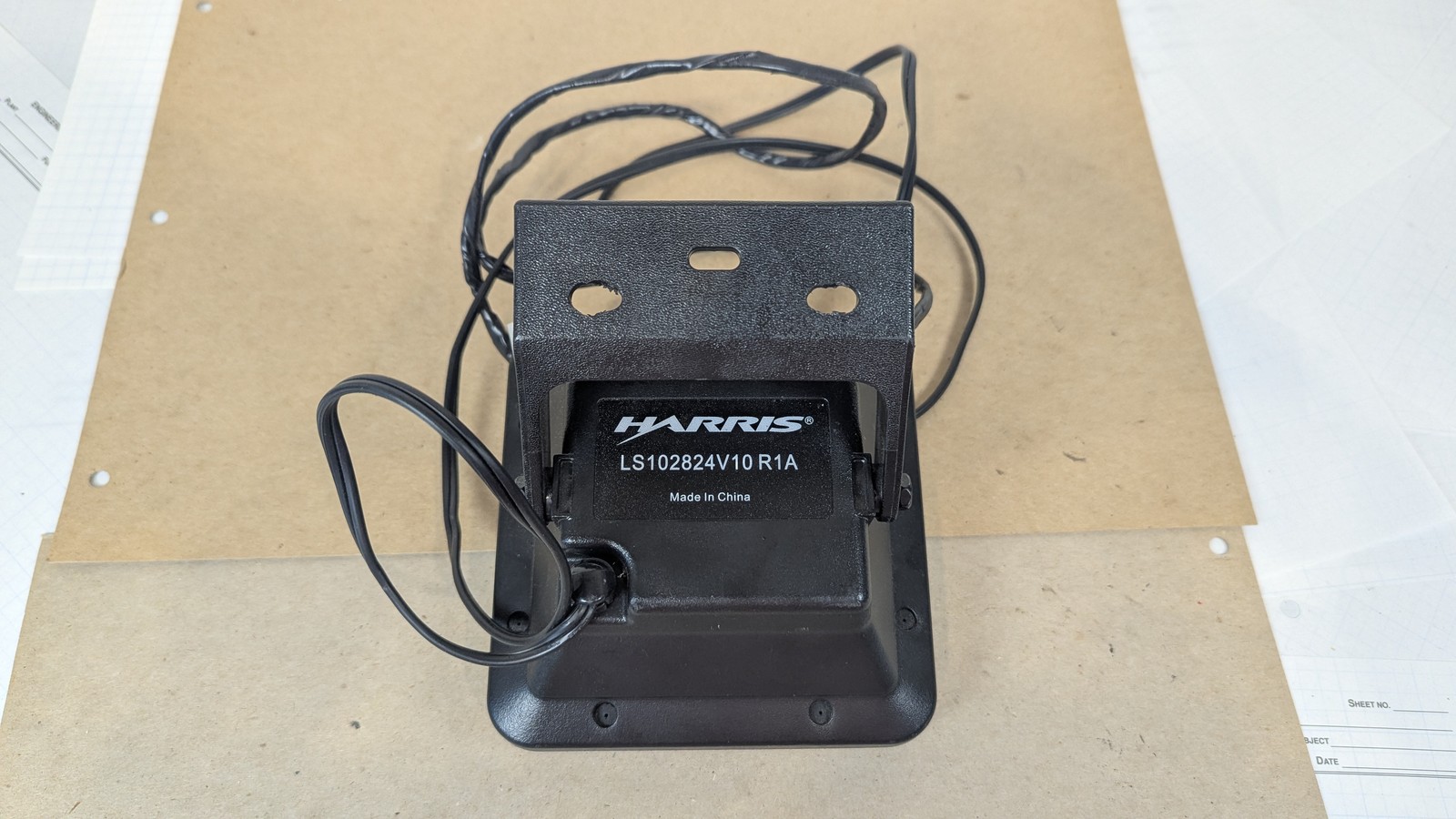

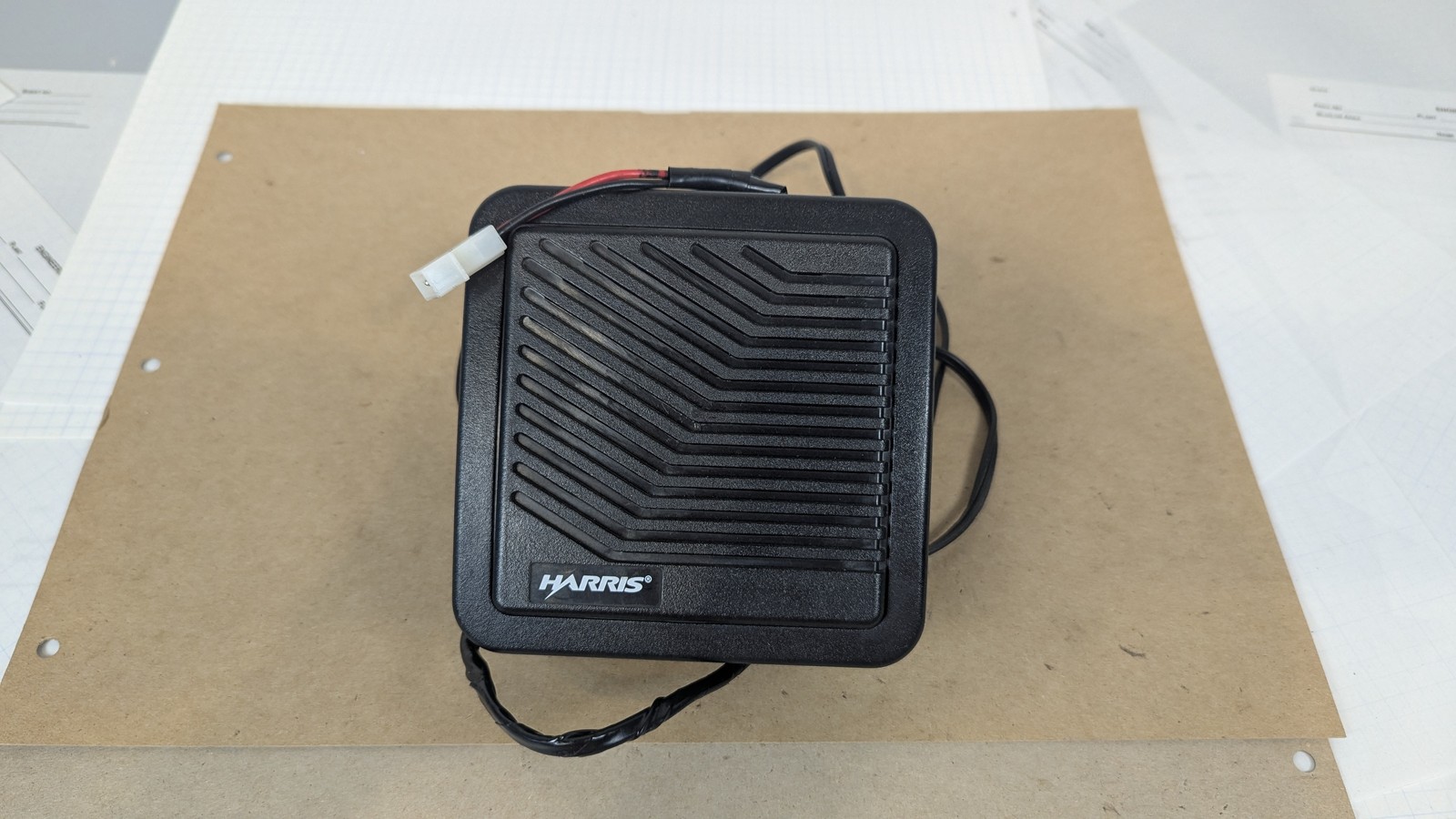

- Harris LS102824V10 R1A, 20 W, 4 ohm, 2-pin connector
- Programming
- NOT programmed. Buyer must program it themselves
- Origin
- Deck and control head made in Japan; speaker made in China
- FCC note
- Labeled restricted to occupational use to satisfy FCC RF exposure limits
