Description

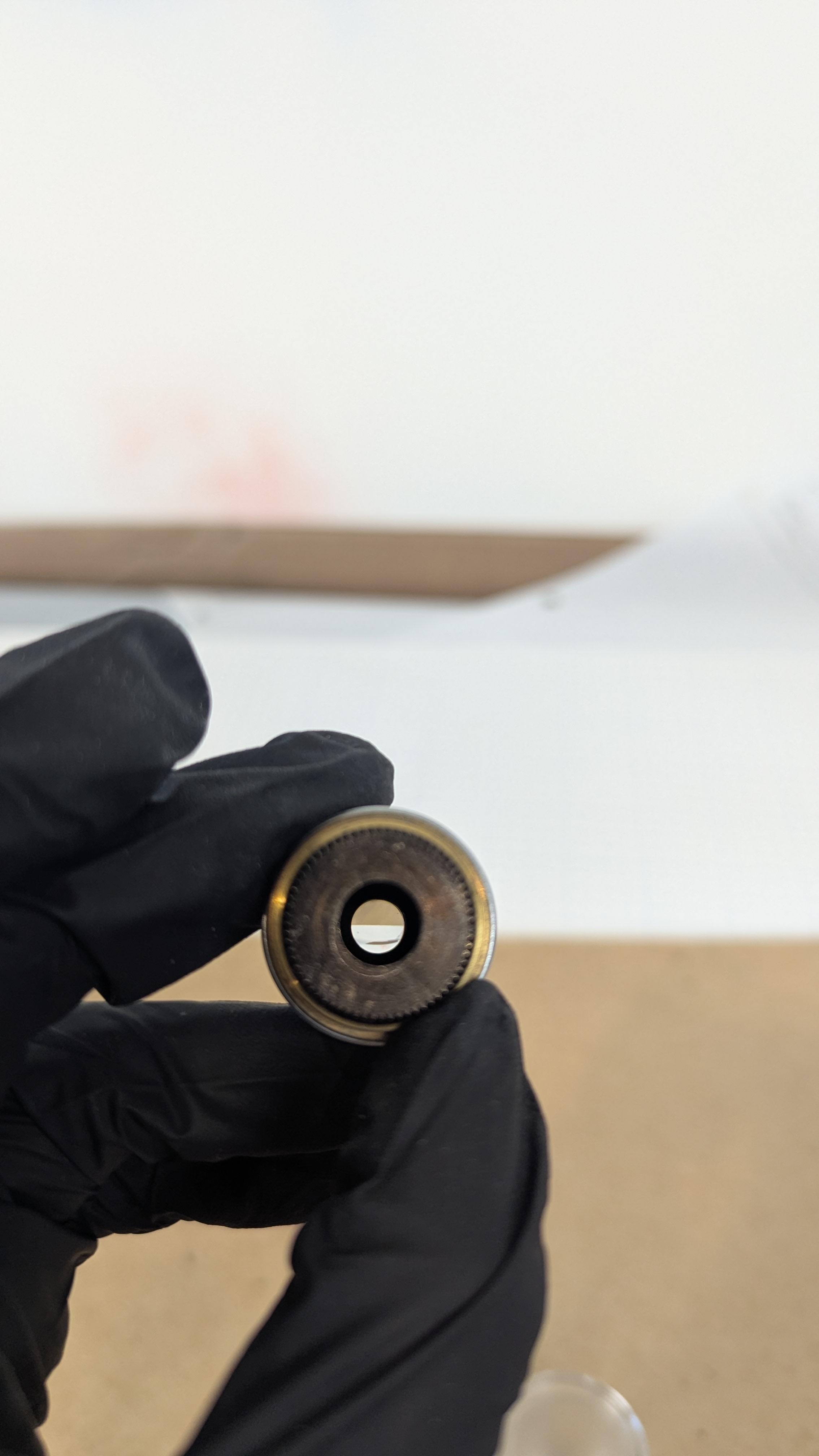

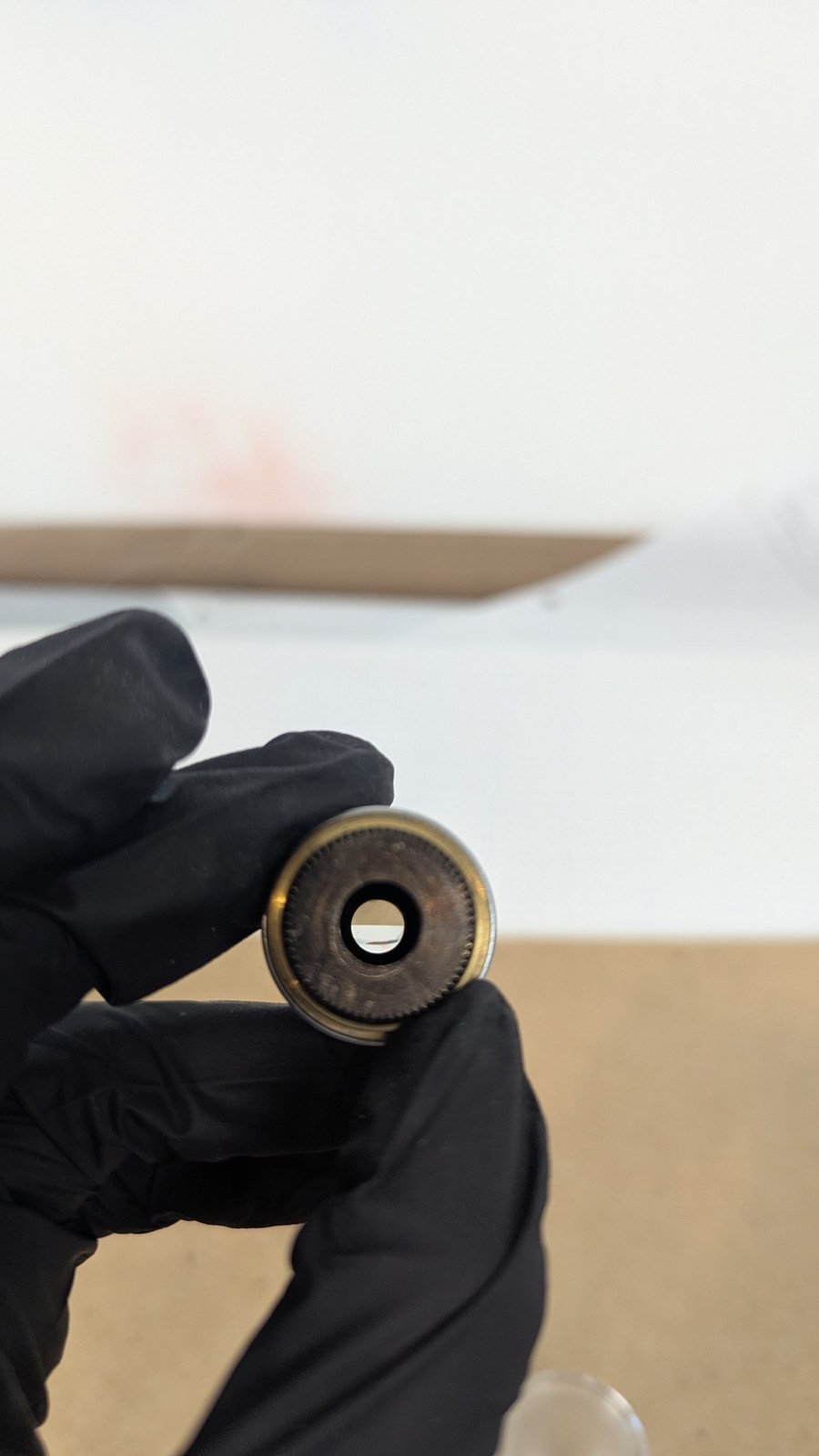

A clean 40X high-dry achromat with no legible maker's mark. I am selling it as unmarked rather than guessing at a brand to raise the price.
Bench report
- Functional

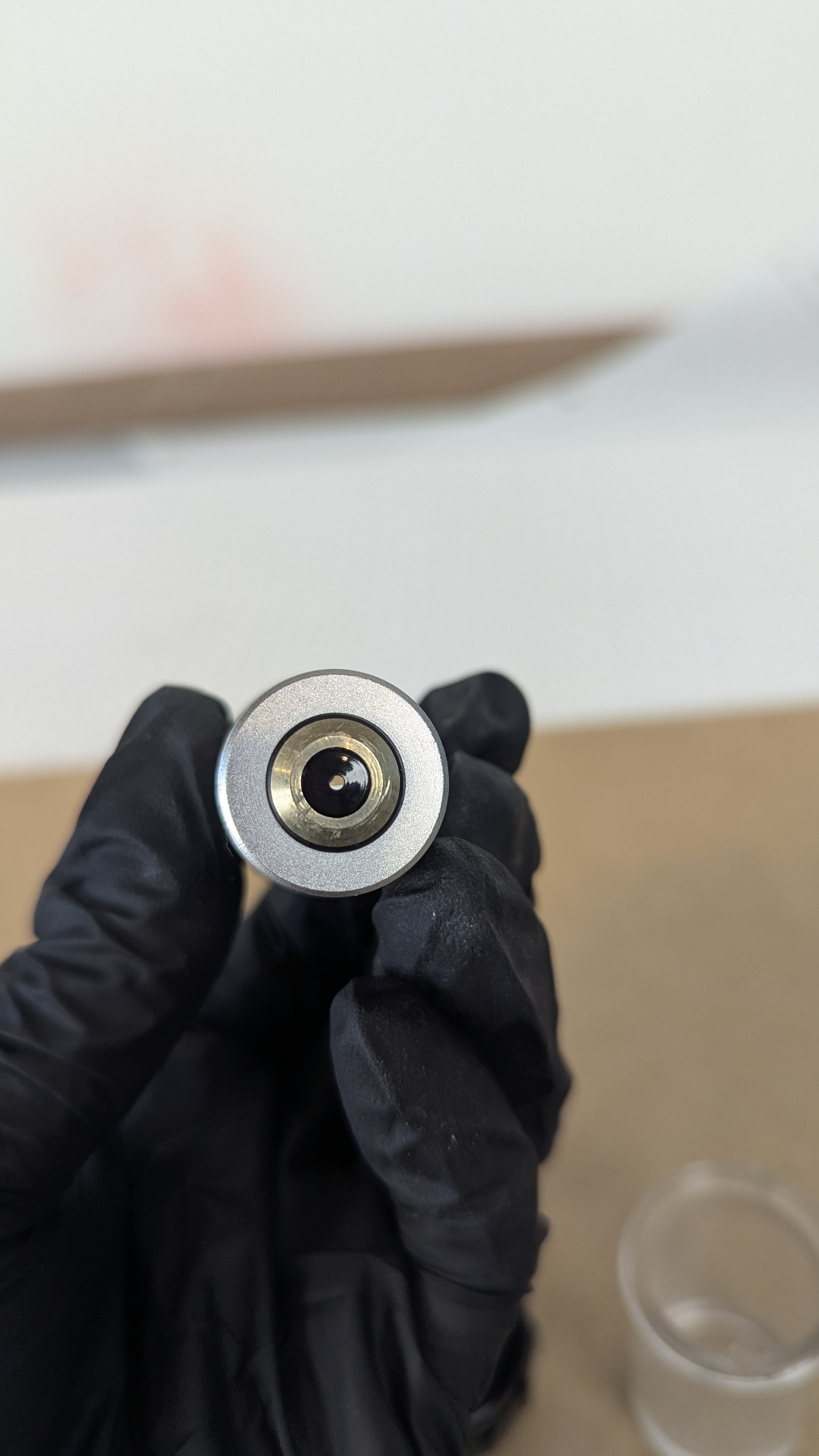

- Optics clear front and rear after cleaning. No haze, no fungus, and no scratch on the front element. Standard RMS thread, undamaged, turns freely by hand.
- Cosmetic
- Chrome barrel with normal handling wear; tape residue removed. Partial engraving only, as described above. Its N.A. 0.66 figure is read from a matching objective off the same bench that carries the legible 'Achro 66' marking; that one is listed separately.
- Tested
- Optics inspected under direct light and against a bright field. Front and rear elements examined at magnification. · No haze, no fungus, no balsam separation, and no chips visible in the glass. · RMS objective thread inspected for burrs, cross-threading, and dings. None found. · Every legible engraving read under raking light and transcribed exactly as marked (see Specifications). · Adhesive tape and residue removed from the barrel, then the optics cleaned and re-inspected. The apparent front-element scratch was residue and lifted completely.
- Not tested
- NOT mounted on a microscope. I do not have a matching stand for it, so resolution, field flatness, parfocality, and working distance at magnification are NOT verified. · No disassembly, recollimation, or internal service performed. · Sold as a used optical component, not as a calibrated or certified instrument. · Maker NOT identified. I will not speculate on a brand, and you should not buy this expecting one.
Specifications
- Maker
- Not marked / not legible. Sold as unmarked
- Magnification
- 40X
- Numerical aperture
- N.A. 0.66
- Optical tier
- Achromat
- Thread
- RMS (Royal Microscopical Society) standard
- Legible engraving

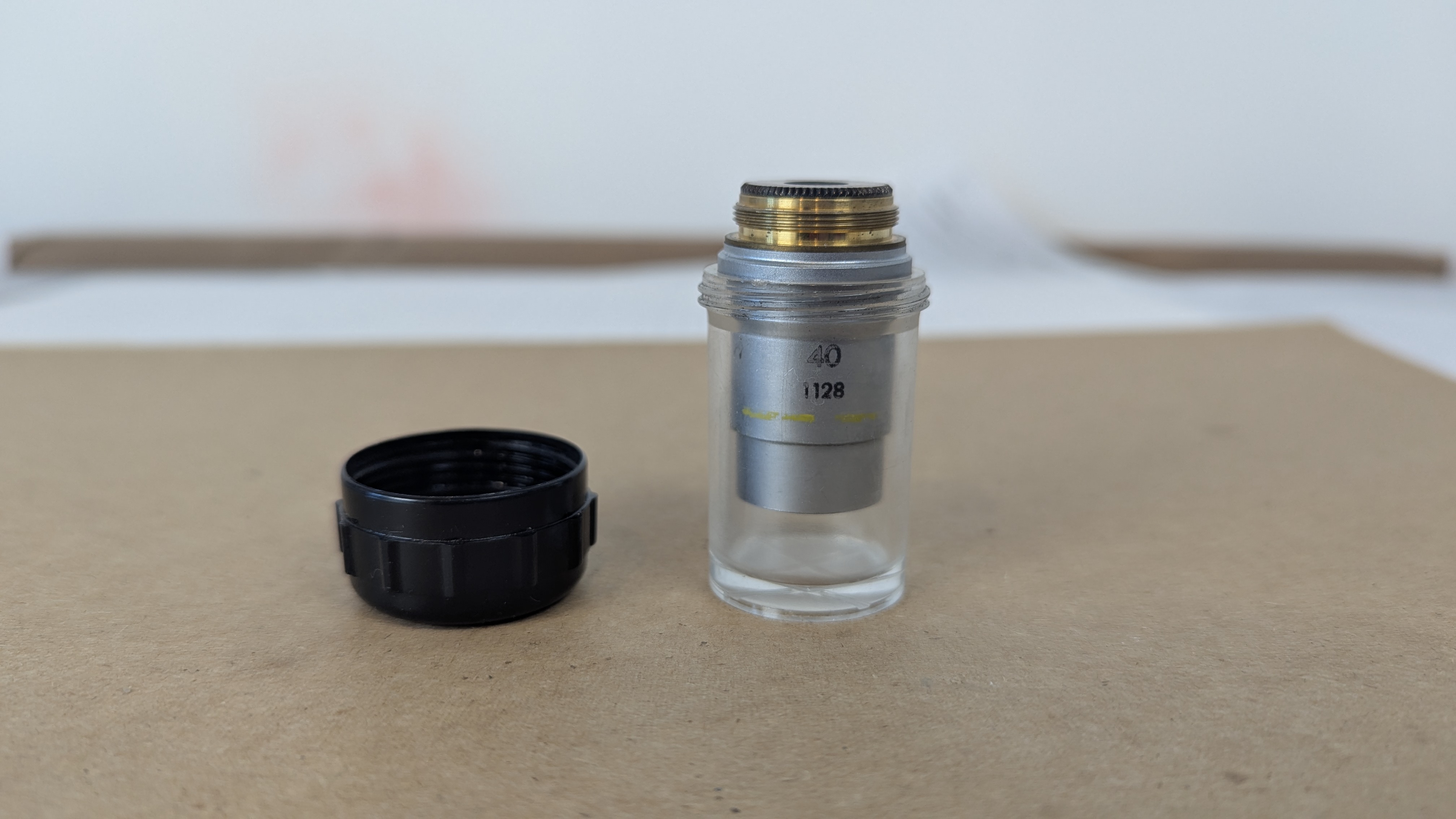

- 40 1128
- Optics
- Clear. Cleaned on the bench, front element undamaged
- Storage

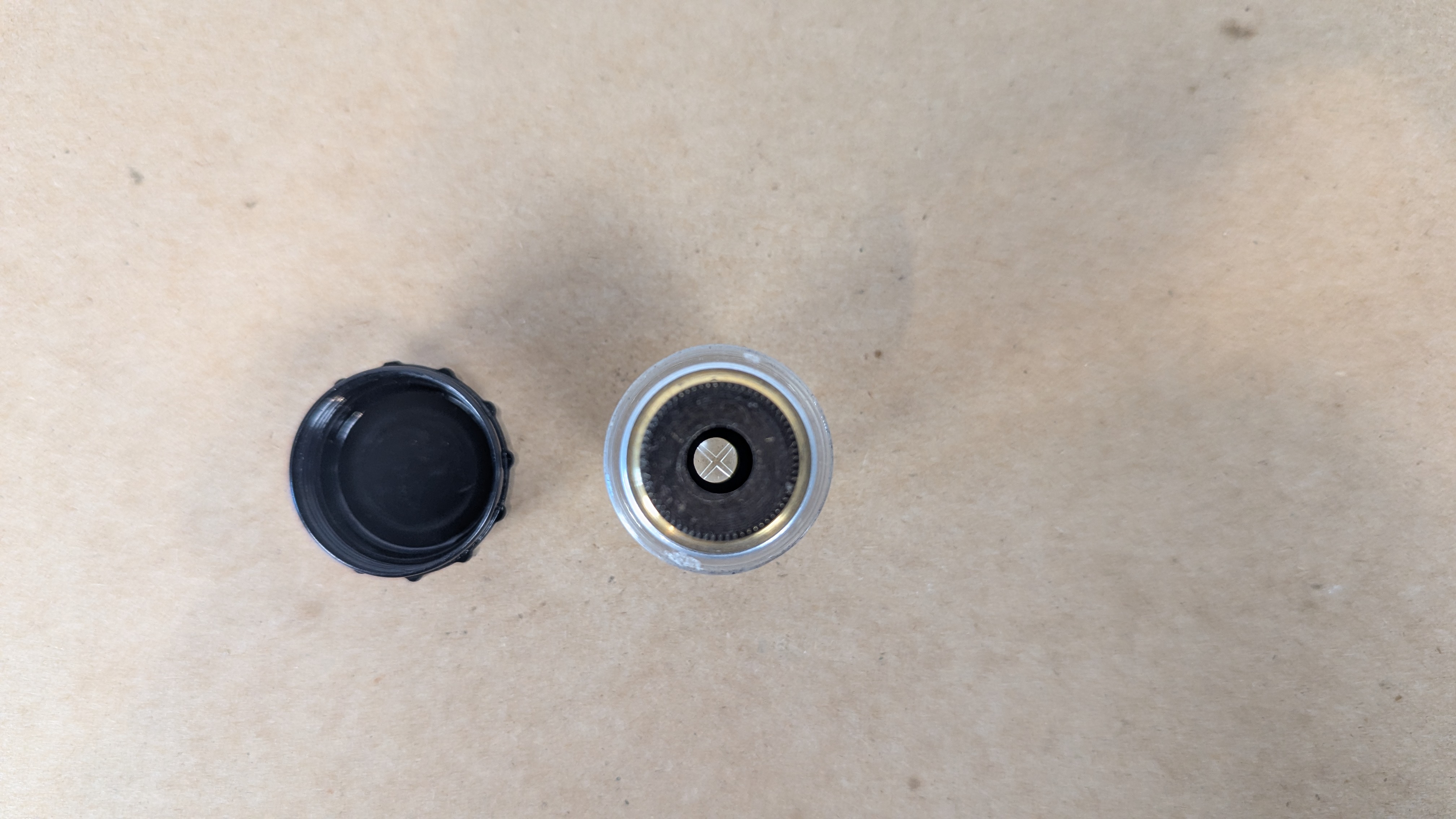

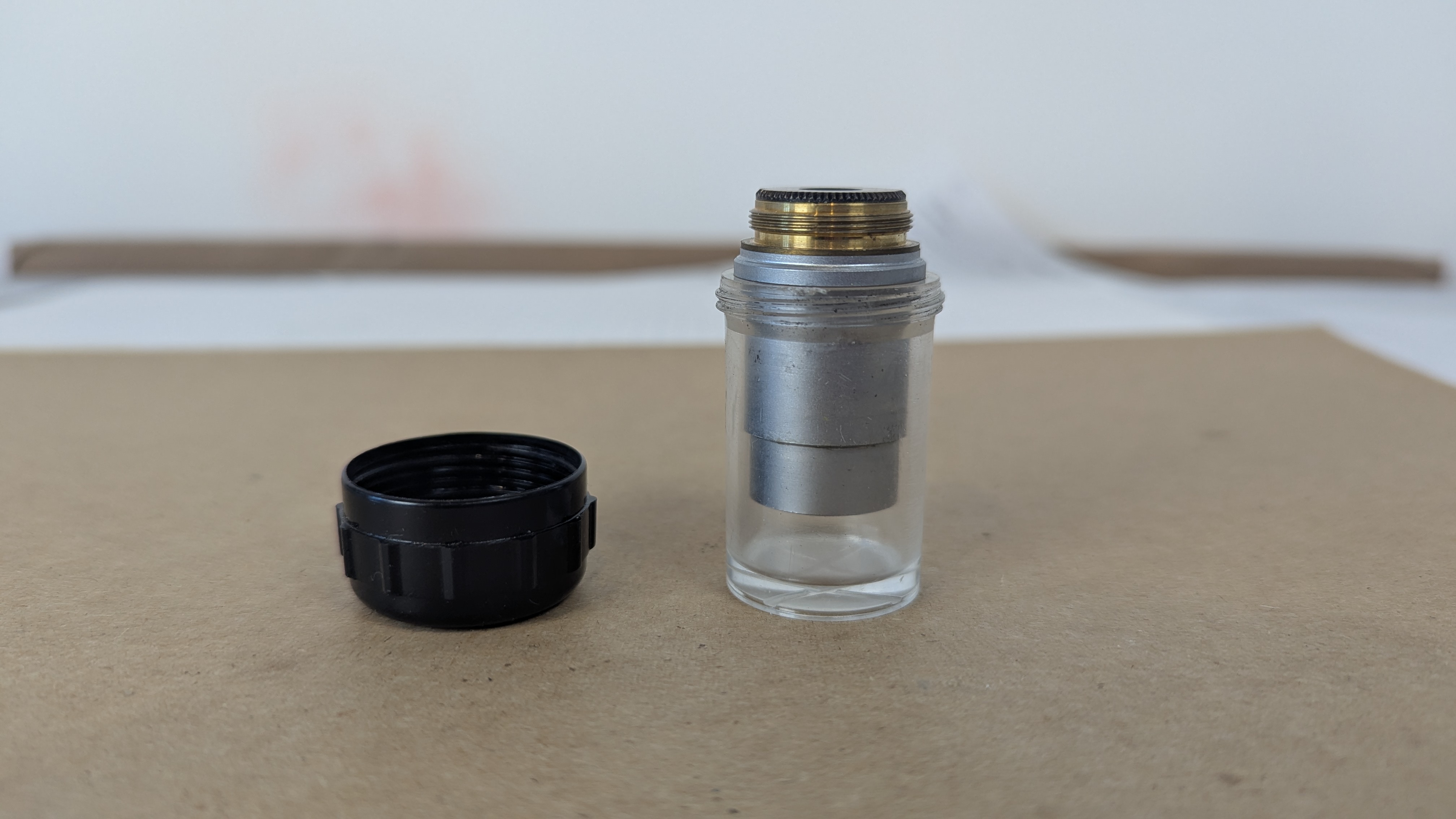

- Screw-top canister included
